AIS800-128O

The World’s Fastest Switch Powered by Broadcom Tomahawk® 6.

AI / ML | AI Switch

  |  AIS800-128O

AI Switch Unleashing 102.4T of Ultimate Computing Power

AIS800-128O

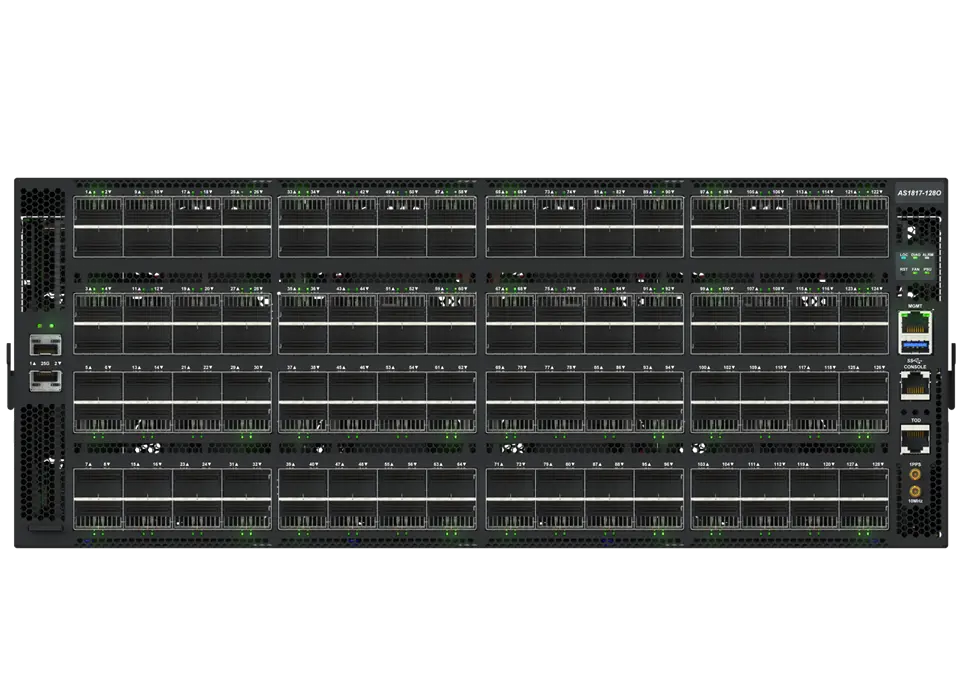

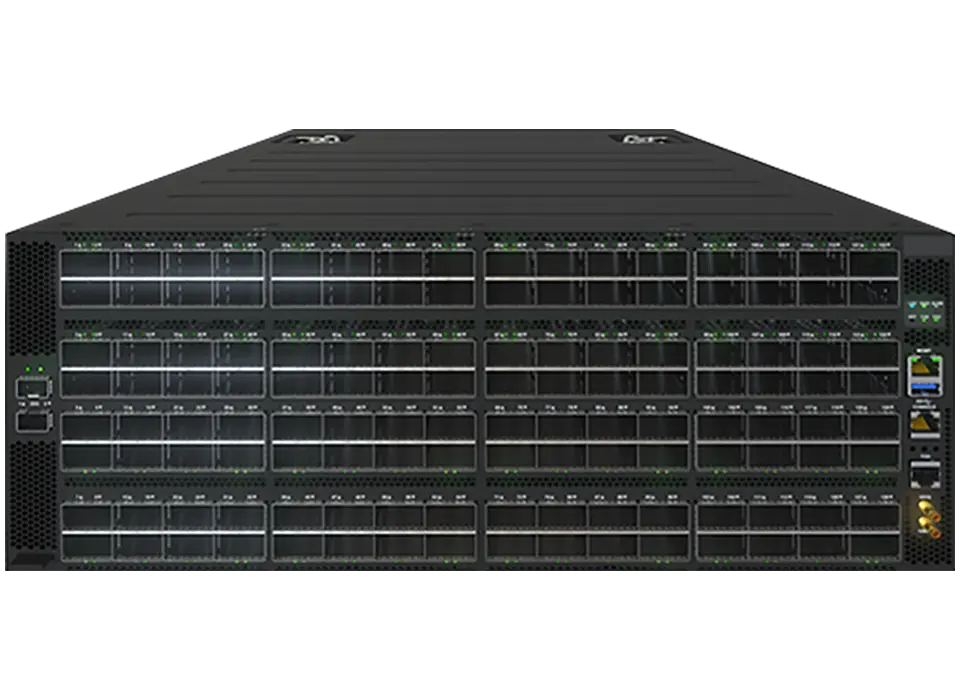

The AIS800-128O is a 128-port 800G AI switch powered by Broadcom Tomahawk® 6. Delivering 102.4 Tbps capacity and sub-microsecond latency, it eliminates bottlenecks in hyperscale AI/ML clusters with high-radix performance and dynamic Flexport™ configurability.

Unprecedented Scale for Generative AI Workloads

The AIS800-128O is engineered to eliminate bandwidth bottlenecks in next-generation hyperscale AI and ML clusters,. Incorporating the groundbreaking Broadcom Tomahawk® 6 (BCM78910) silicon, it delivers an industry-leading 102.4 Tbps switching capacity with 1024 x 100G PAM4 SerDes technology.

Designed for sub-microsecond latency and high-radix scalability, the AIS800-128O enables the largest flat 2-tier networking topologies, significantly reducing Job Completion Time (JCT) for complex generative AI workloads.

Unmatched Performance

Features the world’s first single-chip 102.4 Tbps silicon (Broadcom Tomahawk 6) with 1024 x 100G PAM4 SerDes, designed for next-gen hyperscale infrastructure.

High-Density Connectivity

Offers 128 x 800G (OSFP800) ports. Supports up to 512 logical ports (High Radix) on a single chip to maximize network scale.

AI Workload Optimization

Reduces Job Completion Time (JCT) using Cognitive Routing, Dynamic Load Balancing (DLB), and Global Load Balancing (GLB) with sub-microsecond latency.

Robust System Design

4RU form factor with 2+2 redundant 3200W PSUs and 7+1 hot-swappable fans. Includes SyncE and PTPv2 support for precise timing synchronization.

Broadcom Tomahawk® 6 (BCM78910)

Features

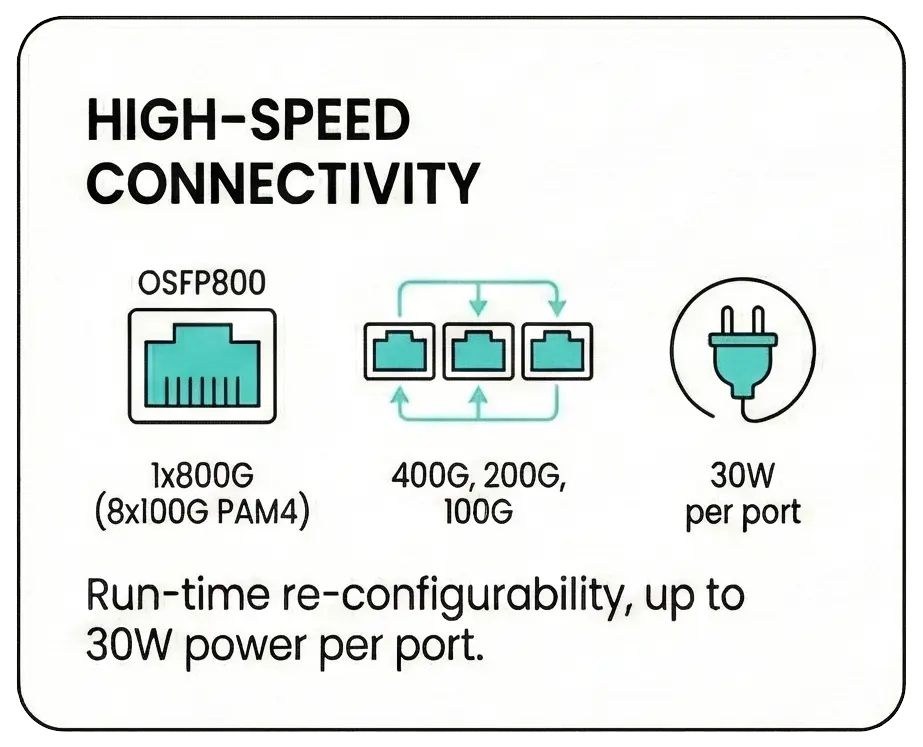

High-Speed Connectivity

Port Configuration : OSFP800 switch ports supporting 1 x 800G (8x100G PAM4) or breakout options to 2x400G.

Flexport™ Technology : Run-time re-configurability supporting 400G, 200G, and 100G variations.

Power : Up to 30W power budget per port for high-performance transceivers (subject to conditions).

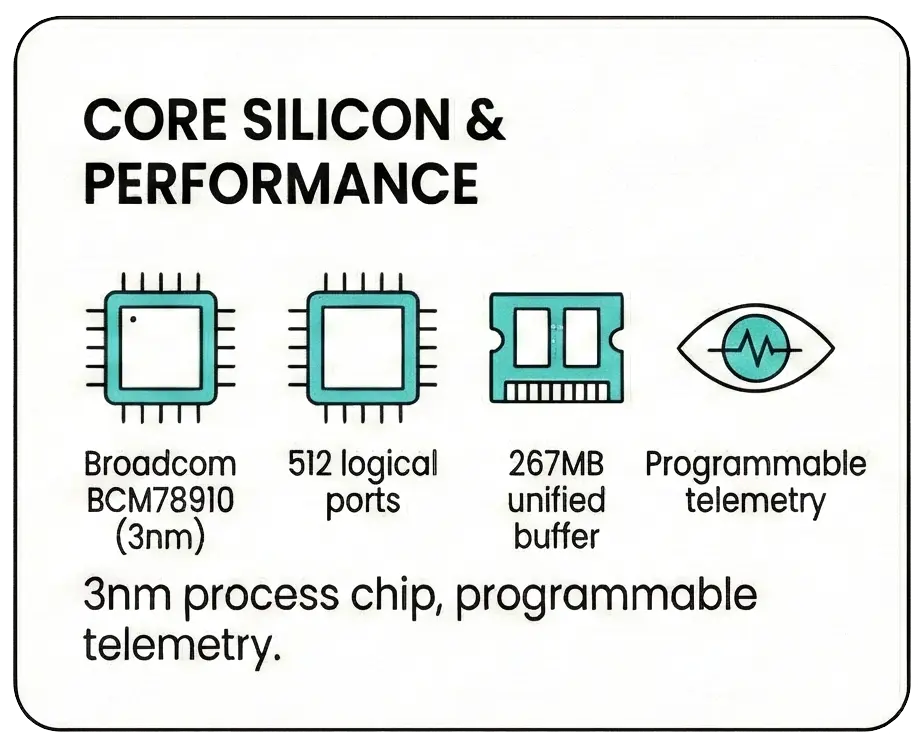

Core Silicon & Performance

Chipset : Broadcom Tomahawk 6P BCM78910 (3nm monolithic process).

Scale : Highest Radix with up to 512 logical ports on a single chip.

Buffering : 267MB unified, fully-shared packet buffer for burst absorption.

Telemetry : Programmable in-band telemetry for real-time network visibility.

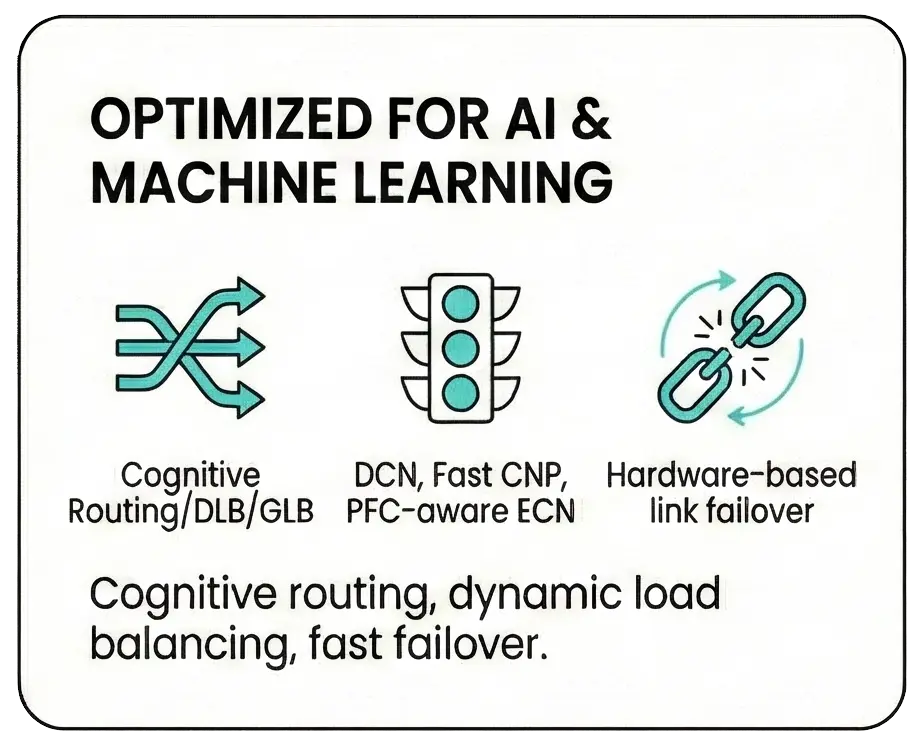

Optimized for AI & Machine Learning

Traffic Management : Advanced Cognitive Routing, Dynamic Load Balancing (DLB), and Global Load Balancing (GLB).

Congestion Control
: Supports Drop Congestion Notification (DCN), Fast CNP, and PFC-aware ECN.

Resiliency : Hardware-based link failover ensures the fastest network recovery and reduces Job Completion Time (JCT).

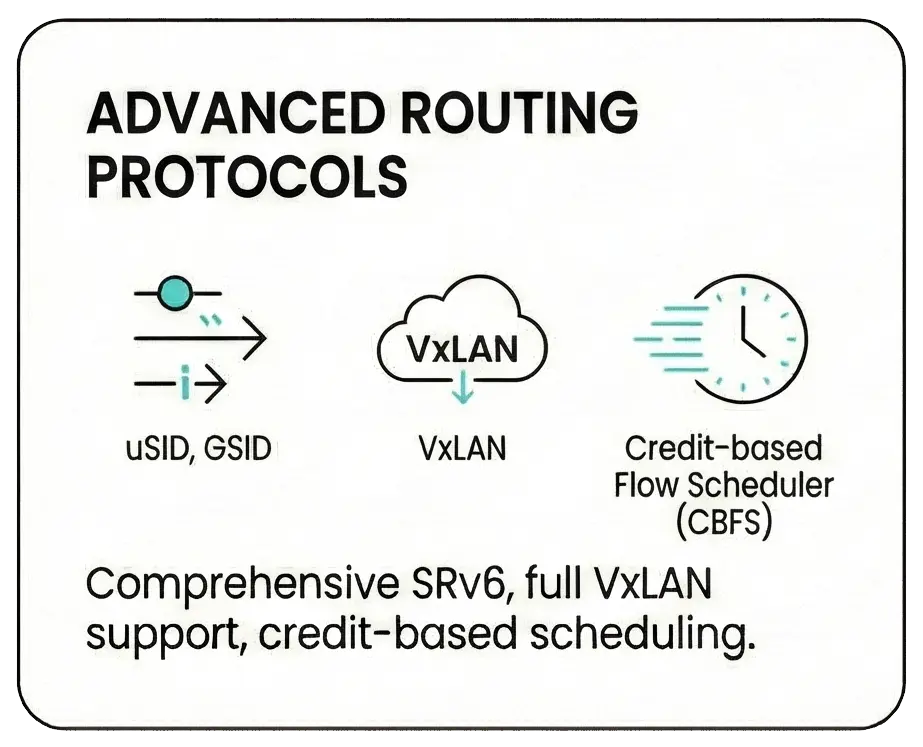

Advanced Routing Protocols

SRv6 Support : Comprehensive support including Micro SID (uSID), Generalized SID (GSID), and canonical/non-canonical modes (Subject to NOS).

Virtualization : Full VxLAN support.

Flow Scheduling : Credit-based Flow Scheduler (CBFS) for precise traffic handling (Subject to NOS).

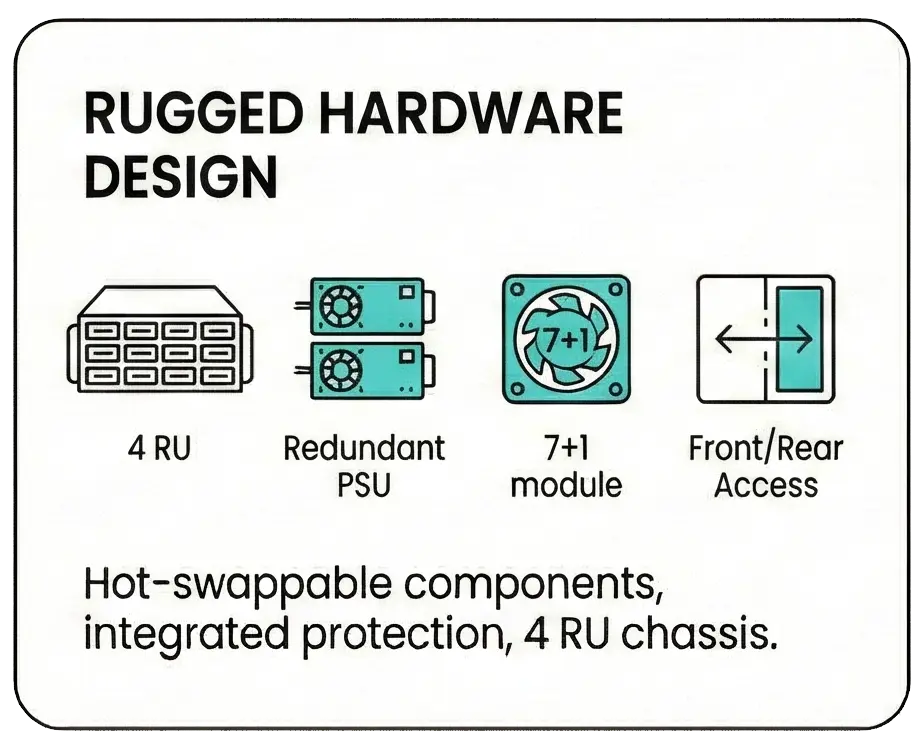

Rugged Hardware Design

Form Factor : 4 RU chassis with front-to-back (AFO) airflow.

Power & Cooling : Hot-swappable 3200W AC/DC PSUs (redundant) and 7+1 redundant fan modules.

Protection : Integrated e-fuses to protect internal components and transceivers.

Access : All ports located on the front; PSUs and fans accessible from the rear.

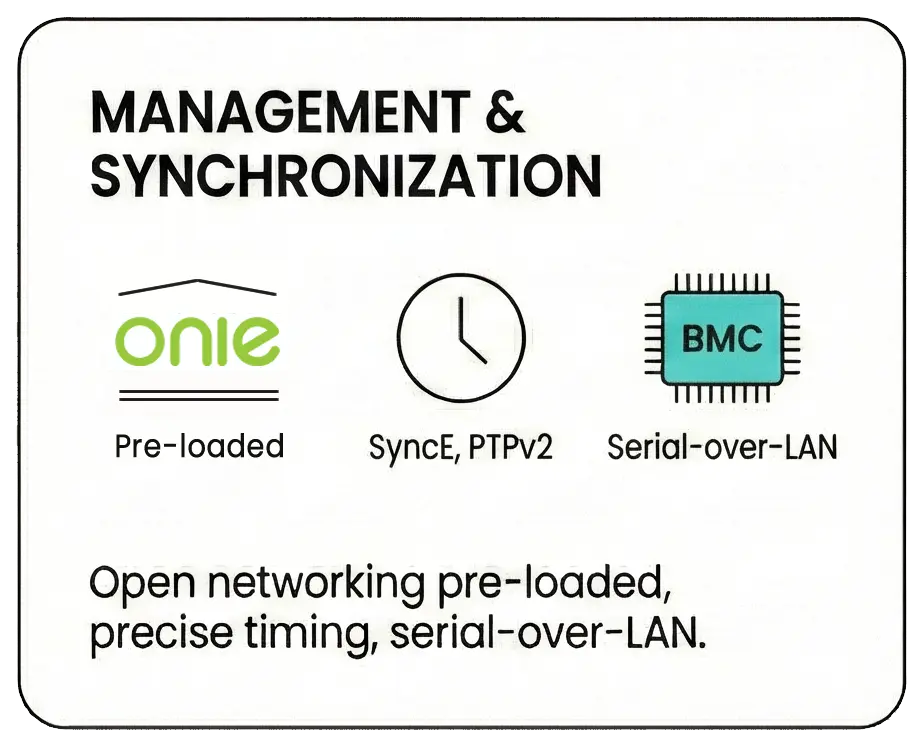

Management & Synchronization

Open Networking : Pre-loaded with ONIE for automated installation of community or commercial NOS.

Timing : SyncE and PTPv2 support (1PPS, 10MHz, and ToD connectors).

Control : BMC module with Serial-over-LAN support.

Use Cases

Future-Proof Architecture : The Key to Seamless 800G to 1.6T

Flexibly breakout single ports to multiple servers, revealing an effortless upgrade path from current setups to next-gen infrastructure.
