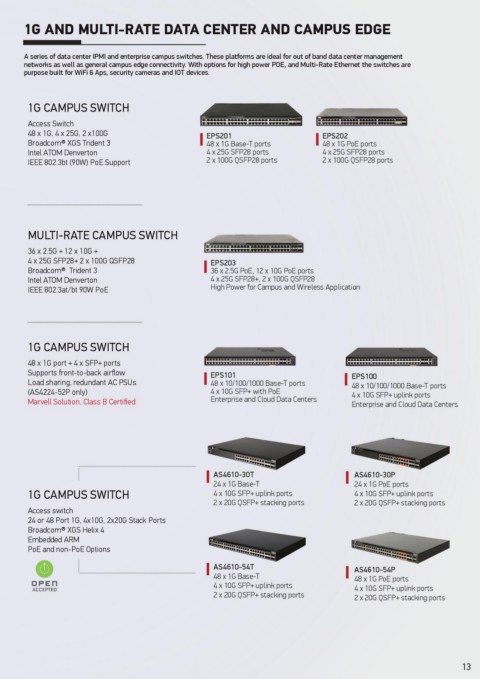

1G AND MULTI-RATE DATA CENTER AND CAMPUS EDGE

A series of data center IPMI and enterprise campus switches. These platforms are ideal for out of band data center management
networks as well as general campus edge connectivity. With options for high power POE, and Multi-Rate Ethernet the switches are
purpose built for WiFi 6 Aps, security cameras and IOT devices.

1G CAMPUS SWITCH
Access Switch
48 x 1G, 4 x 25G, 2 x100G EPS201 EPS202
Broadcom® XGS Trident 3 48 x 1G Base-T ports 48 x 1G PoE ports
Intel ATOM Denverton 4 x 25G SFP28 ports 4 x 25G SFP28 ports
IEEE 802.3bt (90W) PoE Support 2 x 100G QSFP28 ports 2 x 100G QSFP28 ports

MULTI-RATE CAMPUS SWITCH

36 x 2.5G + 12 x 10G +
4 x 25G SFP28+ 2 x 100G QSFP28 EPS203
Broadcom® Trident 3 36 x 2.5G PoE, 12 x 10G PoE ports
Intel ATOM Denverton 4 x 25G SFP28+, 2 x 100G QSFP28
IEEE 802.3at/bt 90W PoE High Power for Campus and Wireless Application

1G CAMPUS SWITCH

48 x 1G port + 4 x SFP+ ports
Supports front-to-back airflow EPS101 EPS100
Load sharing, redundant AC PSUs. 48 x 10/100/1000 Base-T ports 48 x 10/100/1000 Base-T ports
(AS4224-52P only) 4 x 10G SFP+ with PoE 4 x 10G SFP+ uplink ports
Marvell Solution, Class B Certified Enterprise and Cloud Data Centers Enterprise and Cloud Data Centers

AS4610-30T AS4610-30P
24 x 1G Base-T 24 x 1G PoE ports
1G CAMPUS SWITCH 4 x 10G SFP+ uplink ports 4 x 10G SFP+ uplink ports
2 x 20G QSFP+ stacking ports 2 x 20G QSFP+ stacking ports
Access switch
24 or 48 Port 1G, 4x10G, 2x20G Stack Ports
Broadcom® XGS Helix 4
Embedded ARM
PoE and non-PoE Options

AS4610-54T AS4610-54P
48 x 1G Base-T 48 x 1G PoE ports
4 x 10G SFP+ uplink ports 4 x 10G SFP+ uplink ports
2 x 20G QSFP+ stacking ports 2 x 20G QSFP+ stacking ports

13
