P. 9

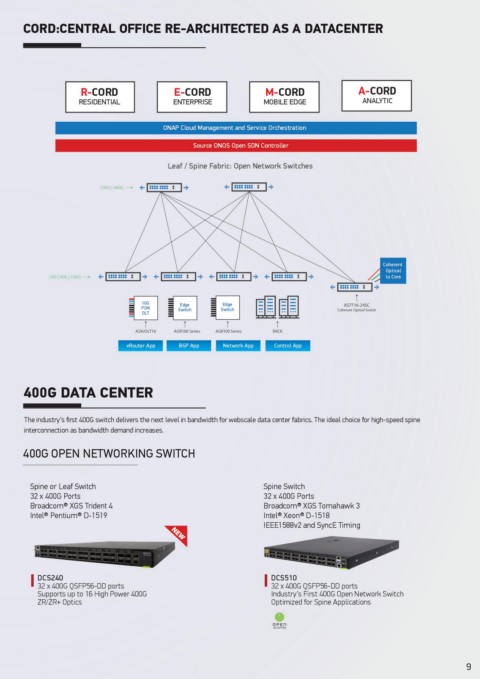

CORD:CENTRAL OFFICE RE-ARCHITECTED AS A DATACENTER
R-CORD E-CORD M-CORD A-CORD
ENTERPRISE SONIC DISTRIBUTION BY EDGECORE RESIDENTIAL ENTERPRISE MOBILE EDGE ANALYTIC
ONAP Cloud Management and Service Orchestration
Source ONOS Open SDN Controller
Leaf / Spine Fabric: Open Network Switches
100G | 400G
Coherent
Optical
10G | 40G | 100G to Core
10G Edge Edge AS7716-24SC
PON Switch Switch Coherent Optical Switch
OLT
ASXvOLT16 AGR100 Series AGR100 Series RACK
vRouter App BGP App Network App Control App
400G DATA CENTER
The industry’s first 400G switch delivers the next level in bandwidth for webscale data center fabrics. The ideal choice for high-speed spine
interconnection as bandwidth demand increases.
400G OPEN NETWORKING SWITCH
Spine or Leaf Switch Spine Switch
32 x 400G Ports 32 x 400G Ports
Broadcom® XGS Trident 4 Broadcom® XGS Tomahawk 3
Intel® Pentium® D-1519 Intel® Xeon® D-1518
IEEE1588v2 and SyncE Timing
DCS240 DCS510
32 x 400G QSFP56-DD ports 32 x 400G QSFP56-DD ports
Supports up to 16 High Power 400G Industry’s First 400G Open Network Switch
ZR/ZR+ Optics Optimized for Spine Applications
9
