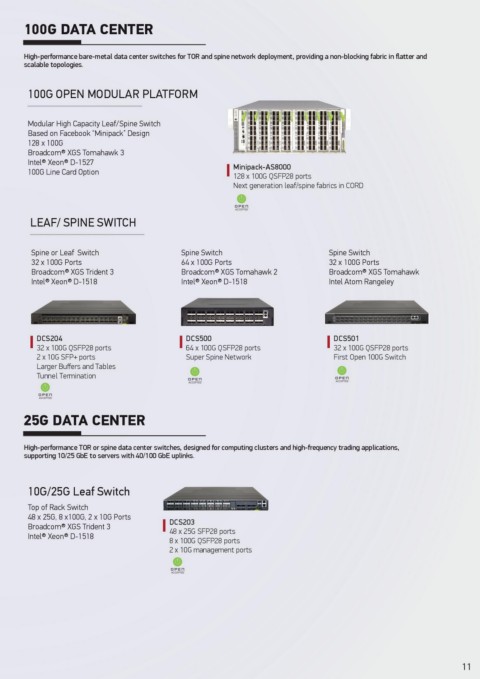

Page 11 - 2022-Q3 Catalogue-New
P. 11
100G DATA CENTER
High-performance bare-metal data center switches for TOR and spine network deployment, providing a non-blocking fabric in flatter and
scalable topologies.
100G OPEN MODULAR PLATFORM
Modular High Capacity Leaf/Spine Switch
Based on Facebook “Minipack” Design
128 x 100G
Broadcom® XGS Tomahawk 3
Intel® Xeon® D-1527 Minipack-AS8000
100G Line Card Option
128 x 100G QSFP28 ports
Next generation leaf/spine fabrics in CORD
LEAF/ SPINE SWITCH
Spine or Leaf Switch Spine Switch Spine Switch
32 x 100G Ports 64 x 100G Ports 32 x 100G Ports
Broadcom® XGS Trident 3 Broadcom® XGS Tomahawk 2 Broadcom® XGS Tomahawk
Intel® Xeon® D-1518 Intel® Xeon® D-1518 Intel Atom Rangeley
DCS204 DCS500 DCS501
32 x 100G QSFP28 ports 64 x 100G QSFP28 ports 32 x 100G QSFP28 ports
2 x 10G SFP+ ports Super Spine Network First Open 100G Switch
Larger Buffers and Tables
Tunnel Termination
25G DATA CENTER
High-performance TOR or spine data center switches, designed for computing clusters and high-frequency trading applications,
supporting 10/25 GbE to servers with 40/100 GbE uplinks.
10G/25G Leaf Switch
Top of Rack Switch
48 x 25G, 8 x100G, 2 x 10G Ports DCS203
Broadcom® XGS Trident 3 48 x 25G SFP28 ports
Intel® Xeon® D-1518
8 x 100G QSFP28 ports
2 x 10G management ports
