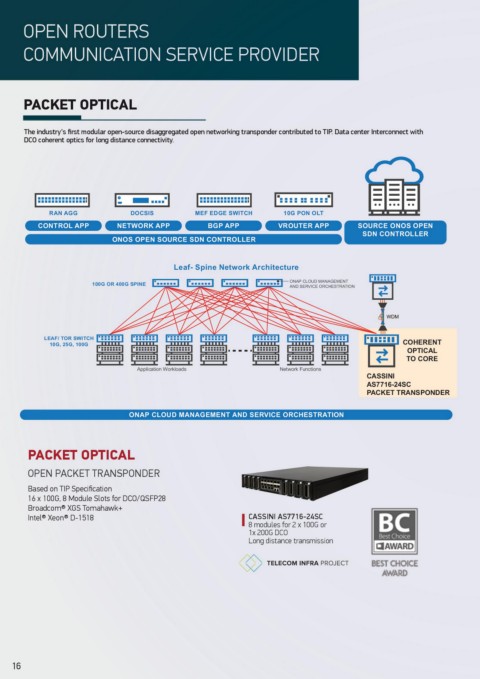

OPEN ROUTERS

COMMUNICATION SERVICE PROVIDER

PACKET OPTICAL

The industry's first modular open-source disaggregated open networking transponder contributed to TIP. Data center Interconnect with
DCO coherent optics for long distance connectivity.

RAN AGG DOCSIS MEF EDGE SWITCH 10G PON OLT
CONTROL APP NETWORK APP BGP APP VROUTER APP SOURCE ONOS OPEN
SDN CONTROLLER
ONOS OPEN SOURCE SDN CONTROLLE R

Leaf- Spine Network Architecture

100G OR 400G SPINE ONAP CLOUD MANAGEMENT
AND SERVICE ORCHESTRATION

WDM

LEAF/ TOR SWITCH COHERENT
10G, 25G, 100G
OPTICAL
TO CORE
Application Workloads Network Functions
CASSINI
AS7716-24SC
PACKET TRANSPONDER

ONAP CLOUD MANAGEMENT AND SERVICE ORCHESTRATION

PACKET OPTICAL

OPEN PACKET TRANSPONDER

Based on TIP Specification
16 x 100G, 8 Module Slots for DCO/QSFP28
Broadcom® XGS Tomahawk+
Intel® Xeon® D-1518 CASSINI AS7716-24SC
8 modules for 2 x 100G or
1x 200G DCO
Long distance transmission
