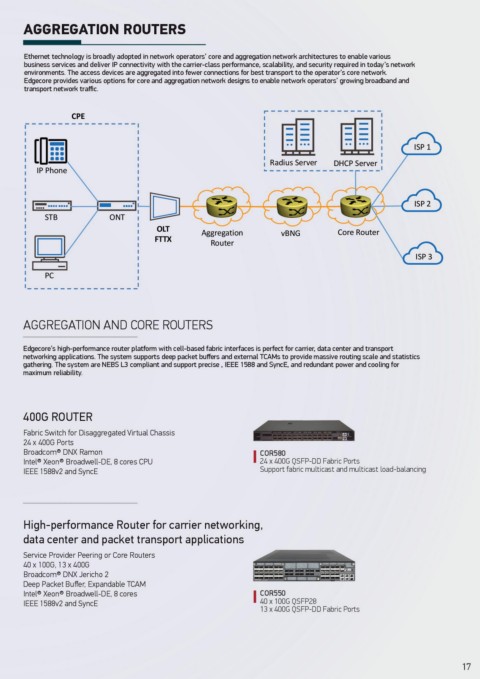

AGGREGATION ROUTERS

Ethernet technology is broadly adopted in network operators’ core and aggregation network architectures to enable various
business services and deliver IP connectivity with the carrier-class performance, scalability, and security required in today’s network
environments. The access devices are aggregated into fewer connections for best transport to the operator’s core network.
Edgecore provides various options for core and aggregation network designs to enable network operators’ growing broadband and
transport network traffic.

CPE

ISP 1
Radius Server DHCP Server
IP Phone

ISP 2
STB ONT
OLT Aggregation vBNG Core Router
FTTX Router

ISP 3

PC

AGGREGATION AND CORE ROUTERS

Edgecore’s high-performance router platform with cell-based fabric interfaces is perfect for carrier, data center and transport
networking applications. The system supports deep packet buffers and external TCAMs to provide massive routing scale and statistics
gathering. The system are NEBS L3 compliant and support precise , IEEE 1588 and SyncE, and redundant power and cooling for
maximum reliability.

400G ROUTER
Fabric Switch for Disaggregated Virtual Chassis
24 x 400G Ports
Broadcom® DNX Ramon COR580
Intel® Xeon® Broadwell-DE, 8 cores CPU 24 x 400G QSFP-DD Fabric Ports
IEEE 1588v2 and SyncE Support fabric multicast and multicast load-balancing

High-performance Router for carrier networking,
data center and packet transport applications

Service Provider Peering or Core Routers
40 x 100G, 13 x 400G
Broadcom® DNX Jericho 2
Deep Packet Buffer, Expandable TCAM
Intel® Xeon® Broadwell-DE, 8 cores COR550
IEEE 1588v2 and SyncE 40 x 100G QSFP28
13 x 400G QSFP-DD Fabric Ports

17
