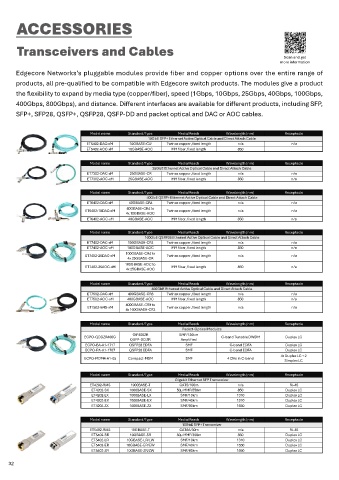

ACCESSORIES
Transceivers and Cables
Scan and get
more information
Edgecore Networks’s pluggable modules provide fiber and copper options over the entire range of
products, all pre-qualified to be compatible with Edgecore switch products. The modules give a product
the flexibility to expand by media type (copper/fiber), speed (1Gbps, 10Gbps, 25Gbps, 40Gbps, 100Gbps,
400Gbps, 800Gbps), and distance. Different interfaces are available for different products, including SFP,
SFP+, SFP28, QSFP+, QSFP28, QSFP-DD and packet optical and DAC or AOC cables.
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
10GbE SFP+ Ethernet Active Optical Cable and Direct Attach Cable 25GbE SFP28 Transceiver
ET5402-DAC-xM 10GBASE-CU Twinax copper, fixed length n/a n/a ET7302-SR 25GBASE-SR OM4/100m 850 Duplex LC
ET5402-AOC-xM 10GBASE-AOC MM fiber, fixed length 850 ET7302-LR 25GBASE-LR SMF/10km 1310 Duplex LC
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
25GbE Ethernet Active Optical Cable and Direct Attach Cable 40GbE QSFP+ Transceiver
ET7302-DAC-xM 25GBASE-CR Twinax copper, fixed length n/a n/a ET6401-SR4 40GBASE-SR4 OM4/150m 850 MPO-12(male)
ET7302-AOC-xM 25GBASE-AOC MM fiber, fixed length 850 n/a ET6401-LR4 40GBASE-LR4 SMF/10km 1310 CWDM Duplex LC
ET6401-PSM4 40GBASE-LR4 SMF/10km 1310 MPO-12(male)
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
40GbE QSFP+ Ethernet Active Optical Cable and Direct Attach Cable Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
ET6402-DAC-xM 40GBASE-CR4 Twinax copper, fixed length n/a n/a 100GbE QSFP28 Transceiver
40GBASE-CR4 to ET7402-SR4 100GBASE-SR4 OM4/100m 850 MPO-12 (male)
ET6402-10DAC-xM Twinax copper, fixed length n/a n/a ET7402-SR2-BD 100GBASE-SR2-BIDI OM4/100m 850&910 Duplex LC
4x 10GBASE-AOC
ET6402-AOC-xM 40GBASE-AOC MM fiber, fixed length 850 n/a ET7402-CWDM4 100GBASE-CWDM4 SMF/2km 1310 CWDM Duplex LC
ET7402-LR4 100GBASE-LR4 SMF/10km 1310 LAN-WDM Duplex LC
ET7402-ER4 100GBASE-ER4 SMF/40km 1310 LAN-WDM Duplex LC
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle ET7402-ZR4 100GBASE-ZR4 SMF/80km 1310 LAN-WDM Duplex LC
100GbE QSFP28 Ethernet Active Optical Cable and Direct Attach Cable ET7402-PSM4-2 100GBASE-PSM4 SMF/2km 1310 MPO-12/APC (male)
ET7402-DAC-xM 100GBASE-CR4 Twinax copper, fixed length n/a n/a ET7402-DR1 100GBASE-DR SMF/500m 1310 Duplex LC
ET7402-AOC-xM 100GBASE-AOC MM fiber, fixed length 850 n/a ET7402-FR1 100GBASE-FR SMF/2km 1310 Duplex LC
100GBASE-CR4 to ET7402-LR1 100GBASE-LR SMF/10km 1310 Duplex LC
ET7402-25DAC-xM Twinax copper, fixed length n/a n/a
4x 25GBASE-CR
100GBASE-AOC to
ET7402-25AOC-xM MM fiber, fixed length 850 n/a Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
4x 25GBASE-AOC
200G QSFP56 Transceiver
ET7452-SR4 200GBASE-SR4 OM4/100m 850 MPO-12/APC (male)
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
400GbE Ethernet Active Optical Cable and Direct Attach Cable Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
ET7502-DAC-xM 400GBASE-CR8 Twinax copper, fixed length n/a n/a 400GbE QSFP56-DD Transceiver
ET7502-AOC-xM 400GBASE-AOC MM fiber, fixed length 850 n/a ET7502-SR8 400GBASE-SR8 OM4/100m 850 MPO-16/APC (male)
400GBASE-CR8 to
ET7502-B4D-xM Twinax copper, fixed length n/a n/a ET7502-DR4 400GBASE-DR4 SMF/500m 1310 MPO-12/APC (male)
4x 100GBASE-CR2 ET7502-XDR4 400GBASE-XDR4 SMF/2km 1310 MPO-12/APC (male)
ET7502-FR4 400GBASE-FR4 SMF/2km 1310 CWDM Duplex LC
ET7502-PLR4 400GBASE-PLR4 SMF/10km 1310 MPO-12/APC (male)
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
Packet-Optical Modules ET7502-SR4.2-BD 400GBASE-SR4.2-BIDI OM4/100m 850 MPO-12/APC (male)
OIF400ZR SMF/120km
ECPO-QDDZR400G C-band Tunable DWDM Duplex LC
QSFP-DD ZR Amplified Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
ECPO-BA-A1-1717 QSFP28 EDFA SMF C-band EDFA Duplex LC 800GbE OSFP and QSFP-DD Transceiver
ECPO-PA-A1-1707 QSFP28 EDFA SMF C-band EDFA Duplex LC ET8001-2DR4 400GBASE-DR4 SMF/500m 1310 2x MPO12/APC (male)
4x Duplex LC + 2 ET8001-2FR4 400GBASE-FR4 SMF/2km 1310 CWDM 2x DuplexLC
ECPO-MDM4-A1-05 Compact-MDM SMF 4 CHs in C-band Simplex LC ET8001-SR8 800GBASE-VR8 OM4/50m 850 MPO16/APC (male)
ET8001-2SR4 800GBASE-VR8 OM4/50m 850 2x MPO12/APC (male)
ET8002-2DR4 400GBASE-DR4 SMF/500m 1310 2x MPO12/APC (male)
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle ET8002-2FR4 400GBASE-FR4 SMF/2km 1310 CWDM 2x DuplexLC
Gigabit Ethernet SFP Transceiver ET8002-SR8 800GBASE-SR8 OM4/50m 850 MPO16/APC (male)
ET4202-RJ45 1000BASE-T CAT5/100m n/a RJ-45 ET8002-2SR4 800GBASE-SR8 OM4/50m 850 2xMPO12/APC (male)
ET4202-SX 1000BASE-SX 50μ MMF/550m 850 Duplex LC
ET4202-LX 1000BASE-LX SMF/10km 1310 Duplex LC
ET4202-EX 1000BASE-EX SMF/40km 1310 Duplex LC Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
ET4202-ZX 1000BASE-ZX SMF/80km 1550 Duplex LC Packet-Optical Modules
SMF/800km
ECPO-CFP2-200GA1 200G CFP2-DCO @200G OFEC C-band Tunable DWDM Duplex LC
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
10GbE SFP+ Transceiver ECPO-QDDZRP400G Open ZR+ SMF/400km+ C-band Tunable DWDM Duplex LC
ET5402-RJ45 10GBASE-T CAT6A/30m n/a RJ-45 QSFP-DD ZR+ Amplified
ET5402-SR 10GBASE-SR 50μ MMF/300m 850 Duplex LC ECPO-MDM8-A2-05 Compact-MDM SMF 8 CHs in C-band 8x Duplex LC + 2 Simplex LC
ET5402-LR 10GBASE-LR/LW SMF/10km 1310 Duplex LC
ET5402-ER 10GBASE-ER/EW SMF/40km 1550 Duplex LC
ET5402-ZR 10GBASE-ZR/ZW SMF/80km 1550 Duplex LC
