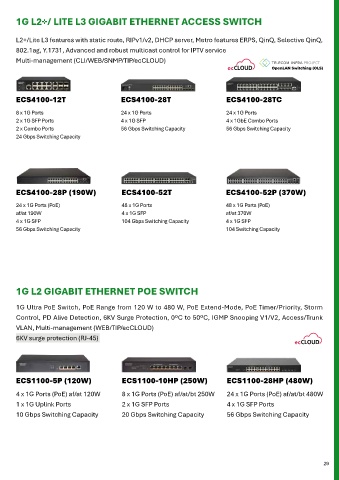

2.5G/25G L2+/ LITE L3 GIGABIT ETHERNET SWITCH 1G L2+/ LITE L3 GIGABIT ETHERNET ACCESS SWITCH

L2/Lite L3 features with static route, 1G/2.5G multi-G Switch, 90 Watts Ultra PoE (ECS4155-30P) L2+/Lite L3 features with static route, RIPv1/v2, DHCP server, Metro features ERPS, QinQ, Selective QinQ,
PoE++ Support for Wi-Fi APs, Multi-management (CLI/WEB/SNMP/TIP/ecCLOUD) 802.1ag, Y.1731, Advanced and robust multicast control for IPTV service
6KV surge protection (RJ-45) Multi-management (CLI/WEB/SNMP/TIP/ecCLOUD)

ECS4155-30T ECS4155-30P (750W) ECS4100-12T ECS4100-28T ECS4100-28TC

24 x 1G/2.5G Ports 24 x 1G/2.5G Ports (PoE) af/at/bt 750W 8 x 1G Ports 24 x 1G Ports 24 x 1G Ports
6 x 25G SFP28 Uplink Ports 6 x 25G SFP28 Uplink Ports 2 x 1G SFP Ports 4 x 1G SFP 4 x 1GbE Combo Ports
420 Gbps Switching Capacity 420 Gbps Switching Capacity 2 x Combo Ports 56 Gbps Switching Capacity 56 Gbps Switching Capacity
24 Gbps Switching Capacity

1G/10G L2+/ LITE L3 GIGABIT ETHERNET SWITCH

L2/Lite L3 features with static route, DC power supply, 24 x 1GbE + 4 x 10G SFP+ ports
Multi-management (CLI/WEB/SNMP) ECS4100-28P (190W) ECS4100-52T ECS4100-52P (370W)
24 x 1G Ports (PoE) 48 x 1G Ports 48 x 1G Ports (PoE)
af/at 190W 4 x 1G SFP af/at 370W
4 x 1G SFP 104 Gbps Switching Capacity 4 x 1G SFP
ECS4130-28T-DC 56 Gbps Switching Capacity 104 Switching Capacity

24 x 1GbE ports
4 x 10G SFP+ ports
128 Switching Capacity

1G/10G L2+/LITE L3 GIGABIT ETHERNET ACCESS/ AGGREGATION 1G L2 GIGABIT ETHERNET POE SWITCH
SWITCH
1G Ultra PoE Switch, PoE Range from 120 W to 480 W, PoE Extend-Mode, PoE Timer/Priority, Storm
Control, PD Alive Detection, 6KV Surge Protection, 0ºC to 50ºC, IGMP Snooping V1/V2, Access/Trunk
L2+/Lite L3 features with static route, RIPv1/v2, DHCP server, Metro features ERPS, QinQ, Selective
QinQ,802.1ag, Y.1731, Multi-management (CLI/WEB/SNMP/TIP/ecCLOUD) VLAN, Multi-management (WEB/TIP/ecCLOUD)
6KV surge protection (RJ-45)

ECS4120-28T ECS4120-28Fv2-I ECS4120-28Fv2 ECS1100-5P (120W) ECS1100-10HP (250W) ECS1100-28HP (480W)

24 x 1GbE ports 20 x GbE Base‑X SFP ports 20 x GbE Base‑X SFP ports 4 x 1G Ports (PoE) af/at 120W 8 x 1G Ports (PoE) af/at/bt 250W 24 x 1G Ports (PoE) af/at/bt 480W
4 x 10G SFP+ ports 4 x 10G SFP+ ports 4 x 10G SFP+ ports 1 x 1G Uplink Ports 2 x 1G SFP Ports 4 x 1G SFP Ports
128 Gbps Switching Capacity 4 x Combo Ports 4 x Combo Ports
128 Gbps Switching Capacity 128 Gbps Switching Capacity 10 Gbps Switching Capacity 20 Gbps Switching Capacity 56 Gbps Switching Capacity
-10ºC to 65ºC
