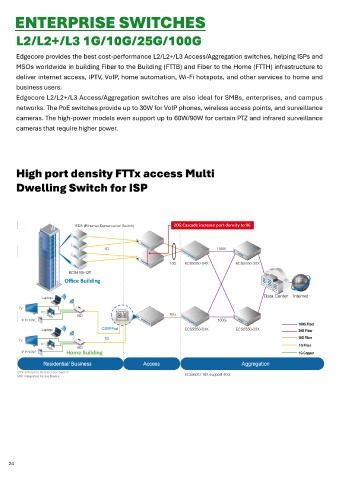

ENTERPRISE SWITCHES 10G/100G L3 ETHERNET AGGREGATION SWITCH

L2/L2+/L3 1G/10G/25G/100G Full L3 switch, ITU-T G.8032 ERPS L2 ring protection with <50ms convergence time, Metro features ERPS,
QinQ, Selective QinQ, 802.1ag, Y.1731, RIP v1/v2, OSPF, BGP4+, VRRP, ECMP, IGMP v2/v3, PIM-SM/SSM,
Edgecore provides the best cost-performance L2/L2+/L3 Access/Aggregation switches, helping ISPs and PBR, RIPng, DHCP relay, DHCP server, Multi-management

MSOs worldwide in building Fiber to the Building (FTTB) and Fiber to the Home (FTTH) infrastructure to (CLI/WEB/SNMP/TIP/ecCLOUD)
deliver internet access, IPTV, VoIP, home automation, Wi-Fi hotspots, and other services to home and
business users.
Edgecore L2/L2+/L3 Access/Aggregation switches are also ideal for SMBs, enterprises, and campus

networks. The PoE switches provide up to 30W for VoIP phones, wireless access points, and surveillance ECS5550-30X ECS5550-54X
cameras. The high-power models even support up to 60W/90W for certain PTZ and infrared surveillance 24 x 1G/10G SFP+ Ports 48 x 1G/10G SFP+ Ports
cameras that require higher power. 6 x 100G QSFP28 Ports 6 x 100G QSFP28 Ports
3+1 Fans 3+1 Fans
1.68Tbps Switching Capacity 2.16Tbps Switching CapacityIntel® Xeon®
D-1548
Supporting Hi-Powered Optics/XCVRs
High port density FTTx access Multi

Dwelling Switch for ISP 1G/25G L3 ETHERNET AGGREGATION SWITCH

Full L3 switch, 48 x 1GbE + 6 x 25G SFP28, Metro features ERPS, QinQ, Selective QinQ, 802.1ag,
High port density FTTx access Multi Dwelling Switch for ISP Y.1731, RIP v1/v2, OSPF, BGP4+, VRRP, ECMP, IGMP v2/v3,PIM-SM/SSM, PBR, RIPng, DHCP relay, DHCP
server, Multi-management (CLI/WEB/SNMP/TIP/ecCLOUD)
EDS (Ethemet Demarcation Switch) 20G Cascade increase port density to 96
6KV surge protection (RJ-45)

1G 100G

ECS4650-54T ECS4650-54P (740W)
10G ECS5550-54X ECS5550-30X
ECS4100-12T
Office Building 48 x 1G RJ-45 Ports 48 x 1G RJ-45 Ports (PoE)
6 x 25G SFP28 Uplink af/at/bt 740W
Data Center Internet 396 Gbps Switching Capacity 6 x 25G SFP28 Uplink
Laptop
396 Gbps Switching Capacity
TV
PC
IAD 10G
IP PHONE 100G
100G Fiber
Laptop CSFP Port ECS5550-54X ECS5550-30X 20G Fiber
1G 10G Fiber
TV 2.5G/25G L3 ETHERNET AGGREGATION SWITCH
PC 1G Fiber
IAD
IP PHONE Home Building 1G Copper
Full L3 switch,Metro features ERPS, QinQ, Selective QinQ, 802.1ag, Y.1731,RIP v1/v2, OSPF, BGP4+,
Residential/ Business Access Aggregation
EDS: Enterprise Demarca�on Switch VRRP, ECMP, IGMP v2/v3, PIM-SM/SSM, PBR, RIPng, DHCP relay, DHCP server,Multi-management
IAD: Integrated Access Device ECS5520-18X support 40G
(CLI/WEB/SNMP/TIP/ecCLOUD)
6KV surge protection (RJ-45)

ECS4655-30T ECS4655-30P (750W)

24 x 1G/2.5G Ports 24 x 1G/2.5G Ports (PoE)
6 x 25G SFP28 Uplink Ports af/at/bt 750W
420 Gbps Switching Capacity 6 x 25G SFP28 Uplink Ports
420 Gbps Switching Capacity
