開放式雲端資料中心 |  1G

  |  EPS112

84G ENTERPRISE SWITCH

EPS112

AS4625-30P
24 x 1G RJ45 PoE, 6 x 1G/10G switch ports with Trident 3. Easy-to-use entry level open networking switch with PoE capability

Audi
10G介面
Audi
front-to-back的風流
Audi
30W/60W/90W+ PoE 支持

概述

The Edgecore EPS112 is a cost-effective, high-performance Gigabit Ethernet L2/L3 PoE switch featuring 30 ports; 24 x 10/100/1000BASE-T ports and 6 x 1G/10G SFP+ uplink ports. Ports 1 to 16 (10/100/1000BASE-T) fully support IEEE 802.3at and IEEE 802.3af Power-over-Ethernet (PoE) up to 30 W, and ports 17 to 24 (10/100/1000BASE-T) fully support IEEE 802.3bt Type 4 up to 90 W.

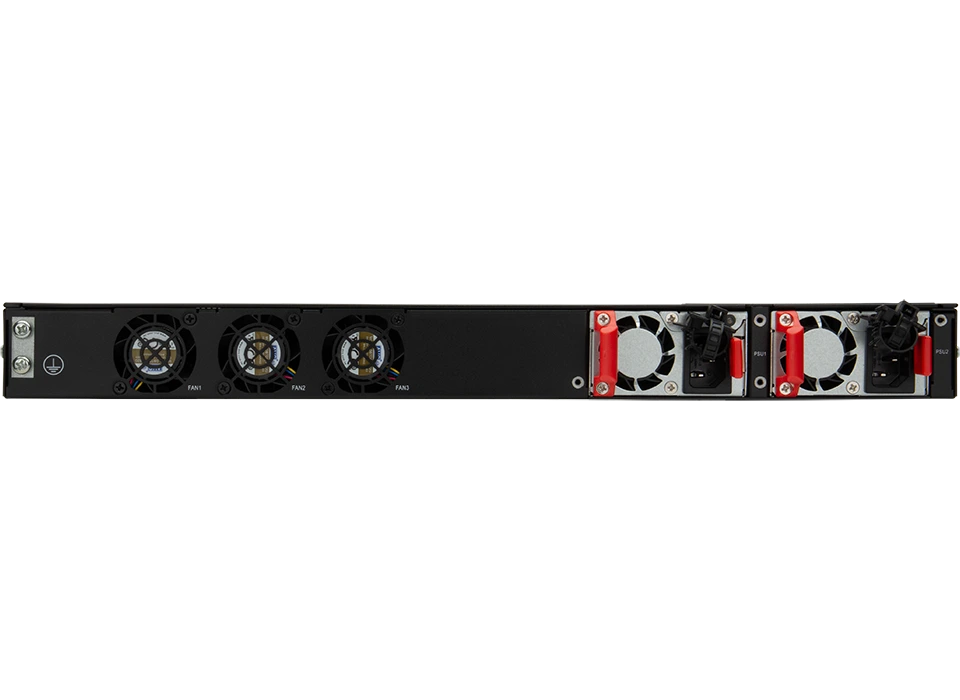

The EPS112 is ideal as an access PoE switch for enterprise or campus access networks. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with front-to-back airflow, and an ability to provide 8 ports with up to 90 Watts of power per port (depending on the PoE power budget) to attached devices, such as VoIP phones, wireless Wi-Fi 6/7 access points, surveillance cameras etc, fully utilizing the existing Cat. 5/5e/6 cable infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source options and commercial NOS offerings.

特點

  • 易於使用的入門級開放式網路交換器,具有 PoE 功能,非常適合企業和園區存取網路。
  • 充分利用現有的 Cat. 5/5e/6 電纜基礎設施(90 W 需要 Cat6A 電纜)。
  • 全線速L2/L3轉送與交換。
  • PoE 功能能夠透過連接到安全設備、Wi-Fi 接入點、IP 電話和 IP 攝影機為企業、醫院、倉庫和零售環境供電。
  • 24 個 10/100/1000BASE-T RJ-45 埠。
  • 6 個 SFP+ 上行連接埠,支援 1GE/10GE。
  • Ports 1 to 16 up to 30 W per-port.
  • Ports 17 to 24 up to 90 W per-port.
  • Intel® Atom® COMe module with C3558R 4-Core 2.4GHz x86 processor.
  • Support TPM 2.0 with PQC capability.
  • 啟用 UEFI 安全啟動的選項。
  • 可熱插拔、頻寬共享、備援交流 PSU。
  • Fixed 2+1 redundant fans。
  • 預先安裝開放網路安裝環境 (ONIE) 的硬體交換器,用於自動載入相容的開源選項和商業 NOS 產品

相容
軟體選項

  • Pica8 – PicOS

  • SONiC

相容
光纖模組

  • 1000BASE SX/LX/EX/ZX (C-temp/I-temp)

  • 1G SFP BIDI up to 40km (C-temp/I-temp)

  • 10G SFP+ (C-temp/I-temp)

  • 10G SFP+ BIDI up to 40km (C-temp/I-temp)

  • 10G DWDM SFP+ up to 80km (C-temp/I-temp)

下載

EPS112-AS4625-30P DS R01

規格書  1.97MB
