1.2T AGGREGATION ROUTER

AGR200

AS7927-50X
40 x 25G SFP28, 8 x 50G SFP56, 2 x 400G QSFP-DD ports powered by Broadcom Qumran3u. A versatile platform designed to meet higher access speed requirements for Telecom and Data Center deployments

Audi
ЦПУ Xeon серверного класса
Audi
Поддержка распределения ролей
Audi
Надежность операторского класса
Audi
Поддержка оптоволоконных кабелей высокой мощности и трансиверов
Audi
IPsec/MACsec
Audi
Large-Size MDB

Описание

The AGR200 is a next-generation, high-performance access aggregation router designed for telecom and data center deployments. It features a versatile port configuration, including 40 x 25G SFP28, 8 x 50G SFP56, 2 x 400G QSFP-DD, with one 400G upgradeable to 800G for future needs, QSFP-DD800 network interfaces. This advanced connectivity is housed in a compact 450 mm deep form factor, making it ideal for ETSI 600 mm and standard data center racks.

The platform is powered by the Broadcom Qumran3u silicon, delivering advanced routing, timing, and security capabilities. To ensure secure data transmission without compromising performance, the AGR200 integrates hardware-accelerated MACsec and IPsec across all ports. Its support for coherent optics (up to 24 W) and deep packet buffering (16GB) makes it a robust solution for telecom access aggregation, metro transport, and secure data center edge routing.

The AGR200 comes pre-loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System (NOS) software, providing operational flexibility and freedom of choice for various network architectures.

Особенности

  • High-Performance Silicon: Powered by Broadcom Qumran3u for scalable routing and service delivery.
  • Flexible Port Configuration:
    40 x 25G SFP28
    8 x 50G SFP56
    2 x 400G QSFP-DD (coherent optics up to 24 W), 1 port upgradeable to 800G
  • Security at Line Rate: Hardware-accelerated MACsec and IPsec on all ports.
  • Deep Packet Buffering: 16GB buffer for handling bursty traffic and minimizing packet loss.
  • Timing and Synchronization: Full support for IEEE 1588v2 and Precision Time Protocol (PTP).
  • Carrier-Grade Reliability:
    Redundant, load-sharing 1+1 AC or -48 VDC power supplies

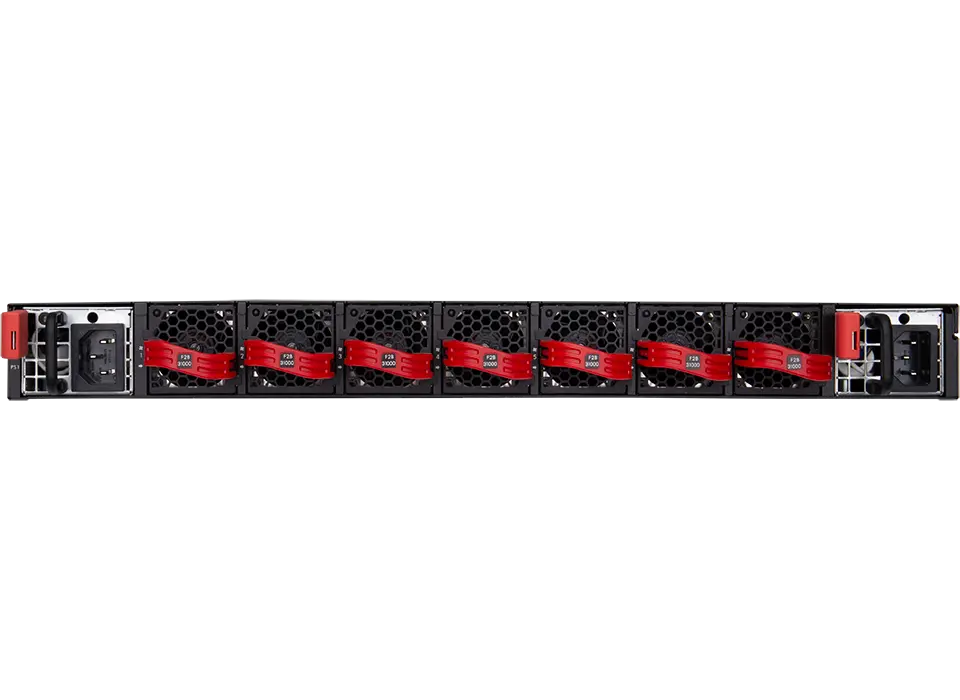

    6+1 modular hot-swappable fans with front-to-back and back-to-front airflow options
  • Fault Isolation: Intelligent detection and isolation of malfunctioning transceivers.
  • Compact Design: Only 450 mm depth, optimized for ETSI 600 mm and standard data center racks

Технические характеристики

Switch Ports 40 x 25G SFP28
8 x 50G SFP56
2 x 400G QSFP-DD(1 port upgradeable to 800G)
Чип коммутатора Broadcom BCM88400 Qumran3u
Processor Intel® Xeon® D Ice Lake 4-Core
BMC AST2600 with OpenBMC
Memory 32GB DDR4 SO-DIMM with ECC
Хранилище 240G m.2 2280 NVMe SSD
TPM TPM2.0 SPI
Rack 1 RU form factor
Timing and Sync SyncE, IEEE1588v2 PTP
Вентиляторы Hot-swappable 6 + 1 redundant fans
Storage Temperature -40°C to 70°C
Рабочая температура 0° C ~ 40° C (спереди назад)

Совместимый
Вариант ПО

    Совместимый
    Трансиверы

    • 10GBASE-SR/LR/ER/ZR/RJ45
    • 25GBASE-СР/ЛР
    • 40GBASE-SR4/LR4/ER4
    • 50GBASE-SR/LR
    • 100GBASE-SR4/CWDM4/LR4/ER4/ZR4/ZR+
    • 200GBASE-SR4/LR4
    • 400GBASE-SR8/DR4/FR4/ZR/ZR+
    • 800GBASE-SR8/2DR4/2FR4

    Совместимый
    Кабели

    • 10G-DAC/AOC
    • 25G-DAC/AOC
    • 40G-DAC/AOC
    • 50G-DAC/AOC
    • 100G-DAC/AOC
    • 200G-DAC/AOC
    • 400G-DAC/AOC/AEC
    • 800G-DAC/AOC/AEC
