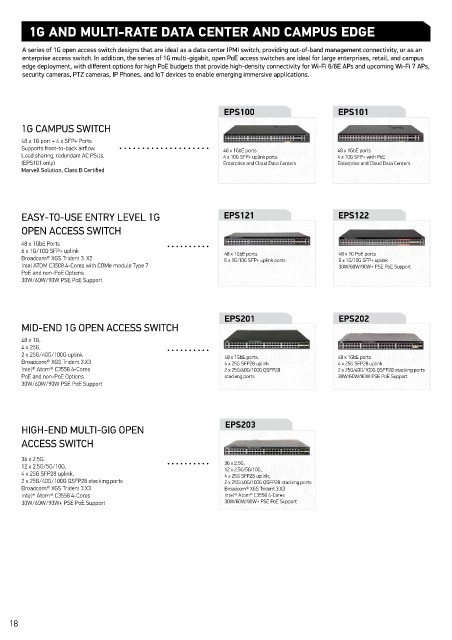

Page 18 - Edgecore Product Catalogue 2024
P. 18

1G AND MULTI-RATE DATA CENTER AND CAMPUS EDGE


       A series of 1G open access switch designs that are ideal as a data center IPMI switch, providing out-of-band management connectivity, or as an
       enterprise access switch. In addition, the series of 1G multi-gigabit, open PoE access switches are ideal for large enterprises, retail, and campus
       edge deployment, with different options for high PoE budgets that provide high-density connectivity for Wi-Fi 6/6E APs and upcoming Wi-Fi 7 APs,
       security cameras, PTZ cameras, IP Phones, and IoT devices to enable emerging immersive applications.




                                                            EPS100                        EPS101
       1G CAMPUS SWITCH

       48 x 1G port + 4 x SFP+ Ports
       Supports front-to-back airflow                       48 x 1GbE ports               48 x 1GbE ports
       Load sharing, redundant AC PSUs.                     4 x 10G SFP+ uplink ports     4 x 10G SFP+ with PoE
       (EPS101 only)                                        Enterprise and Cloud Data Centers   Enterprise and Cloud Data Centers
       Marvell Solution, Class B Certified






       EASY-TO-USE ENTRY LEVEL 1G                           EPS121                        EPS122
       OPEN ACCESS SWITCH

       48 x 1GbE Ports
       6 x 1G/10G SFP+ uplink                               48 x 1GbE ports               48 x 1G PoE ports
       Broadcom® XGS Trident 3. X2                          6 x 1G/10G SFP+ uplink ports  6 x 1G/10G SFP+ uplink
       Intel ATOM C3508 4-Cores with COMe module Type 7                                   30W/60W/90W+ PSE PoE Support
       PoE and non-PoE Options
       30W/60W/90W PSE PoE Support




                                                            EPS201                        EPS202
       MID-END 1G OPEN ACCESS SWITCH
       48 x 1G,
       4 x 25G,
       2 x 25G/40G/100G uplink                              48 x 1GbE ports,              48 x 1GbE ports
       Broadcom® XGS Trident 3.X3                           4 x 25G SFP28 uplink          4 x 25G SFP28 uplink
       Intel® Atom® C3558 4-Cores                           2 x 25G/40G/100G QSFP28       2 x 25G/40G/100G QSFP28 stacking ports
       PoE and non-PoE Options                              stacking ports                30W/60W/90W PSE PoE Support
       30W/60W/90W PSE PoE Support





                                                            EPS203
       HIGH-END MULTI-GIG OPEN
       ACCESS SWITCH

       36 x 2.5G,                                           36 x 2.5G,
       12 x 2.5G/5G/10G,                                    12 x 2.5G/5G/10G,
       4 x 25G SFP28 uplink,                                4 x 25G SFP28 uplink,
       2 x 25G/40G/100G QSFP28 stacking ports               2 x 25G/40G/100G QSFP28 stacking ports
       Broadcom® XGS Trident 3.X3                           Broadcom® XGS Trident 3.X3
       Intel® Atom® C3558 4-Cores                           Intel® Atom® C3558 4-Cores
       30W/60W/90W+ PSE PoE Support                         30W/60W/90W+ PSE PoE Support
