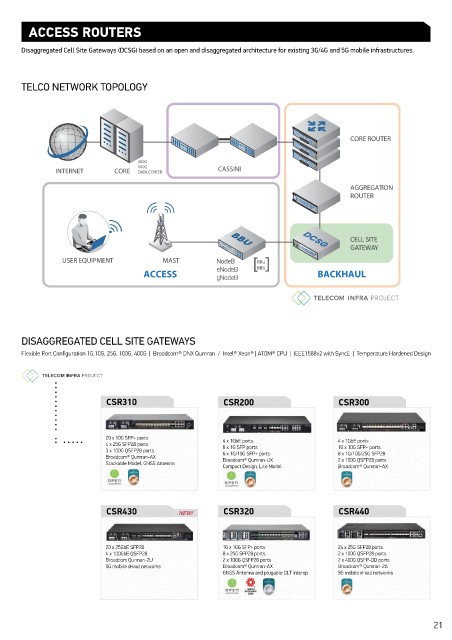

ACCESS ROUTERS
Disaggregated Cell Site Gateways (DCSG) based on an open and disaggregated architecture for existing 3G/4G and 5G mobile infrastructures.
TELCO NETWORK TOPOLOGY
CORE ROUTER
400G
100G
INTERNET CORE DATA CENTER CASSINI
AGGREGATION
ROUTER
DCSG CELL SITE
GATEWAY
USER EQUIPMENT MAST NodeB RRU
ACCESS eNodeB [ BBU [ BACKHAUL
gNodeB
DISAGGREGATED CELL SITE GATEWAYS
Flexible Port Configuration 1G,10G, 25G, 100G, 400G | Broadcom® DNX Qumran / Intel® Xeon® | ATOM® CPU | IEEE1588v2 with SyncE | Temperature Hardened Design
CSR310 CSR200 CSR300
20 x 10G SFP+ ports 4 x 1GbE ports 4 x 1GbE ports
4 x 25G SFP28 ports 8 x 1G SFP ports 16 x 10G SFP+ ports
3 x 100G QSFP28 ports 6 x 1G/10G SFP+ ports 8 x 1G/10G/25G SFP28
Broadcom® Qumran-AX Broadcom® Qumran-UX 2 x 100G QSFP28 ports
Stackable Model, GNSS Antenna
Compact Design, Lite Model Broadcom® Qumran-AX
CSR430 NEW! CSR320 CSR440
20 x 25GbE SFP28 16 x 10G SFP+ ports 24 x 25G SFP28 ports
4 x 100GbE QSFP28 8 x 25G SFP28 ports 2 x 100G QSFP28 ports
Broadcom Qurman-2U 2 x 100G QSFP28 ports 2 x 400G QSFP-DD ports
5G mobile xHaul networks Broadcom® Qumran-AX Broadcom® Qumran-2A
GNSS Antenna and plugable OLT interop 5G mobile xHaul networks
