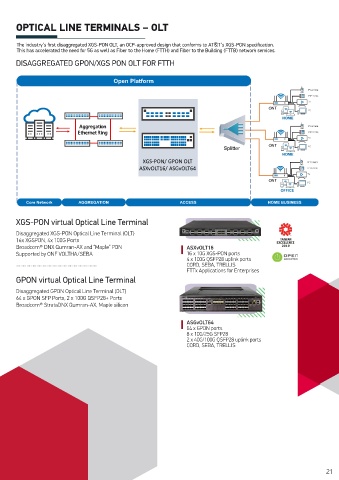

OPEN ROUTERS FOR COMMUNICATION OPTICAL LINE TERMINALS – OLT

SERVICE PROVIDER The industry’s first disaggregated XGS-PON OLT, an OCP-approved design that conforms to AT&T’s XGS-PON specification.

This has accelerated the need for 5G as well as Fiber to the Home (FTTH) and Fiber to the Building (FTTB) network services.

DISAGGREGATED GPON/XGS PON OLT FOR FTTH

Open Platform

ONT

g
A Aggregation
a
g
r
g
e
o
n
i
t
g
n
n
R
i
e
t
E Ethernett Ring
h
r
e
ONT
Splitter
XGS-PON/ GPON OLT
ASXvOLT16/ ASGvOLT64
ONT
Core Network AGGREGATION ACCESS HOME BUSINESS
XGS-PON virtual Optical Line Terminal
Disaggregated XGS-PON Optical Line Terminal (OLT)
16x XGSPON, 4x 100G Ports
Broadcom® DNX Qumran-AX and “Maple” PON ASXvOLT16
Supported by ONF VOLTHA/SEBA 16 x 10G XGS-PON ports
4 x 100G QSFP28 uplink ports
CORD, SEBA, TRELLIS
FTTx Applications for Enterprises
GPON virtual Optical Line Terminal
Disaggregated GPON Optical Line Terminal (OLT)
64 x GPON SFP Ports, 2 x 100G QSFP28+ Ports
Broadcom® StrataDNX Qumran-AX, Maple silicon

ASGvOLT64
64 x GPON ports
8 x 10G/25G SFP28
2 x 40G/100G QSFP28 uplink ports
CORD, SEBA, TRELLIS
