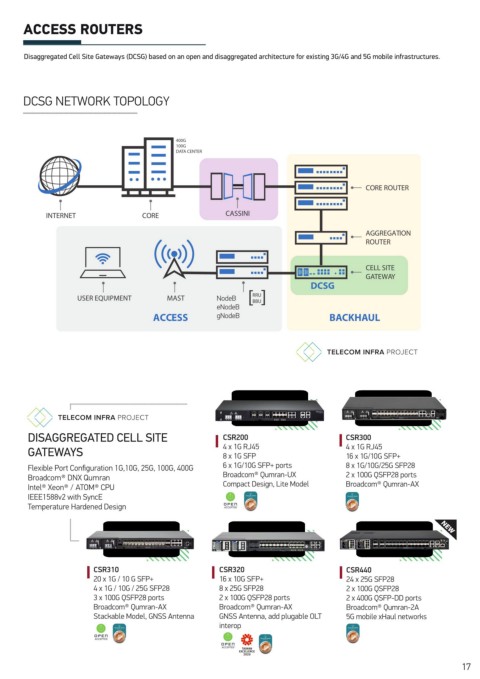

ACCESS ROUTERS
Disaggregated Cell Site Gateways (DCSG) based on an open and disaggregated architecture for existing 3G/4G and 5G mobile infrastructures.
DCSG NETWORK TOPOLOGY
400G
100G
DATA CENTER
CORE ROUTER
INTERNET CORE CASSINI
AGGREGATION
ROUTER
CELL SITE
GATEWAY
DCSG
RRU
USER EQUIPMENT MAST NodeB [ BBU [
eNodeB
ACCESS gNodeB BACKHAUL
DISAGGREGATED CELL SITE CSR200 CSR300
GATEWAYS 4 x 1G RJ45 4 x 1G RJ45
16 x 1G/10G SFP+
8 x 1G SFP
Flexible Port Configuration 1G,10G, 25G, 100G, 400G 6 x 1G/10G SFP+ ports 8 x 1G/10G/25G SFP28
Broadcom® DNX Qumran Broadcom® Qumran-UX 2 x 100G QSFP28 ports
Intel® Xeon® / ATOM® CPU Compact Design, Lite Model Broadcom® Qumran-AX
IEEE1588v2 with SyncE
Temperature Hardened Design
CSR310 CSR320 CSR440
20 x 1G / 10 G SFP+ 16 x 10G SFP+ 24 x 25G SFP28
4 x 1G / 10G / 25G SFP28 8 x 25G SFP28 2 x 100G QSFP28
3 x 100G QSFP28 ports 2 x 100G QSFP28 ports 2 x 400G QSFP-DD ports
Broadcom® Qumran-AX Broadcom® Qumran-AX Broadcom® Qumran-2A
Stackable Model, GNSS Antenna GNSS Antenna, add plugable OLT 5G mobile xHaul networks
interop
