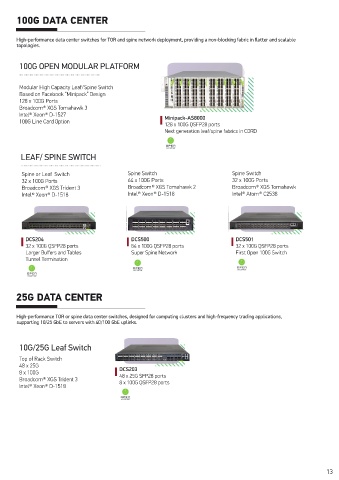

Page 13 - CATALOGUE_2023_2H
P. 13
100G DATA CENTER
High-performance data center switches for TOR and spine network deployment, providing a non-blocking fabric in flatter and scalable
topologies.
100G OPEN MODULAR PLATFORM
Modular High Capacity Leaf/Spine Switch
Based on Facebook “Minipack” Design
128 x 100G Ports
Broadcom® XGS Tomahawk 3
Intel® Xeon® D-1527 Minipack-AS8000
100G Line Card Option
128 x 100G QSFP28 ports
Next generation leaf/spine fabrics in CORD
LEAF/ SPINE SWITCH
Spine or Leaf Switch Spine Switch Spine Switch
32 x 100G Ports 64 x 100G Ports 32 x 100G Ports
Broadcom® XGS Trident 3 Broadcom® XGS Tomahawk 2 Broadcom® XGS Tomahawk
Intel® Xeon® D-1518 Intel® Xeon® D-1518 Intel® Atom® C2538
DCS204 DCS500 DCS501
32 x 100G QSFP28 ports 64 x 100G QSFP28 ports 32 x 100G QSFP28 ports
Larger Buffers and Tables Super Spine Network First Open 100G Switch
Tunnel Termination
25G DATA CENTER
High-performance TOR or spine data center switches, designed for computing clusters and high-frequency trading applications,
supporting 10/25 GbE to servers with 40/100 GbE uplinks.
10G/25G Leaf Switch
Top of Rack Switch
48 x 25G DCS203
8 x 100G 48 x 25G SFP28 ports
Broadcom® XGS Trident 3 8 x 100G QSFP28 ports
Intel® Xeon® D-1518
