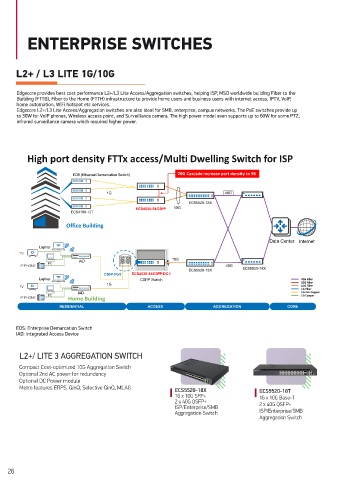

Page 26 - CATALOGUE_2023_2H

ENTERPRISE SWITCHES

L2+ / L3 LITE 1G/10G

Edgecore provides best cost performance L2+/L3 Lite Access/Aggregation switches, helping ISP, MSO worldwide building Fiber to the
Building (FTTB), Fiber to the Home (FTTH) infrastructure to provide home users and business users with internet access, IPTV, VoIP,
home automation, WiFi hotspot etc services.
Edgecore L2+/L3 Lite Access/Aggregation switches are also ideal for SMB, enterprise, campus networks. The PoE switches provide up
to 30W for VoIP phones, Wireless access point, and Surveillance camera. The high power model even supports up to 60W for some PTZ,
infrared surveillance camera which required higher power.

High port density FTTx access/Multi Dwelling Switch for ISP

EDS (Ethernet Demarcation Switch) 20G Cascade increase port density to 96

1G 40G
ECS5520-18X
ECS4530-54CSFP 10G
ECS4100-12T
Office Building

Data Center Internet
Laptop
TV
IAD 10G
PC
IP PHONE 40G
ECS5520-18X ECS5520-18X
CSFP Port ECS4530-54CSFP-DC-I
Laptop CSFP Switch 40G Fiber
1G 20G Fiber
TV 10G Fiber
1G Fiber
IAD 1G PoE Copper
PC 1G Copper
IP PHONE Home Building
RESIDENTIAL ACCESS AGGREGATION CORE
EDS: Enterprise Demarcation Switch
IAD: Integrated Access Device

L2+/ LITE 3 AGGREGATION SWITCH

Compact Cost-optimized 10G Aggregation Switch
Optional 2nd AC power for redundancy
Optional DC Power module
Metro features ERPS, QinQ, Selective QinQ, MLAG ECS5520-18X ECS5520-18T
16 x 10G SFP+ 16 x 10G Base-T
2 x 40G QSFP+ 2 x 40G QSFP+
ISP/Enterprise/SMB
Aggregation Switch ISP/Enterprise/SMB
Aggregation Switch
