25.6T AGGREGATION ROUTER

AGR600

AS9927-32D
32 x 800G QSFP-DD800 ports powered by new generation Broadcom Qumran3D. Designed for large-scale data centers, Scale Across DCI for GPU clusters, and as Aggregation routers for service providers.

Audi
ЦПУ Xeon серверного класса
Audi
Поддержка распределения ролей
Audi
Надежность операторского класса
Audi
Поддержка оптоволоконных кабелей высокой мощности и трансиверов
Audi
IPsec/MACsec
Audi
Large-Size MDB

Описание

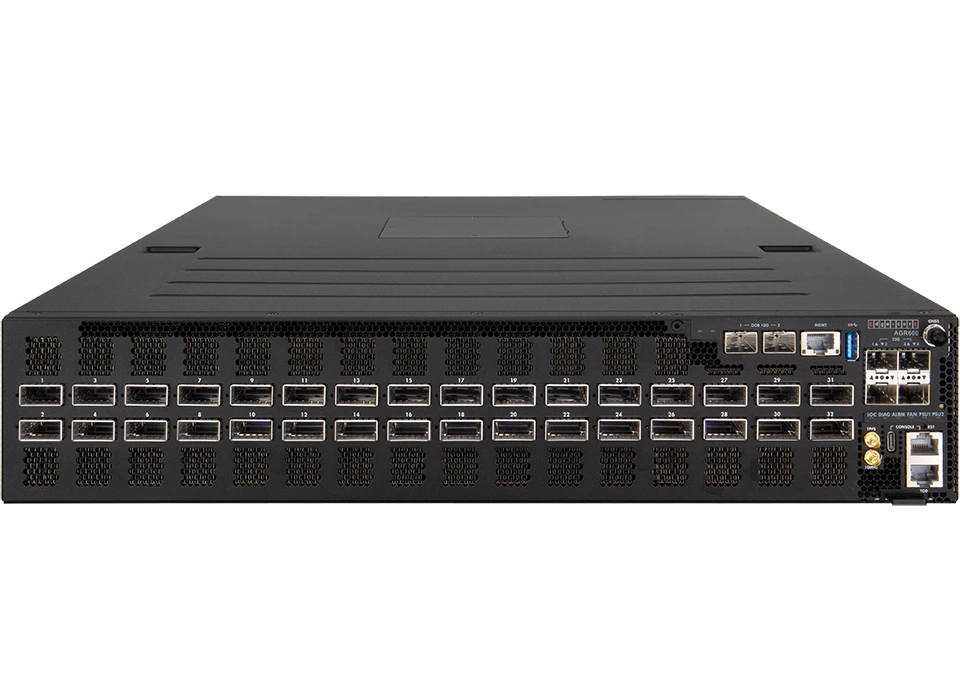

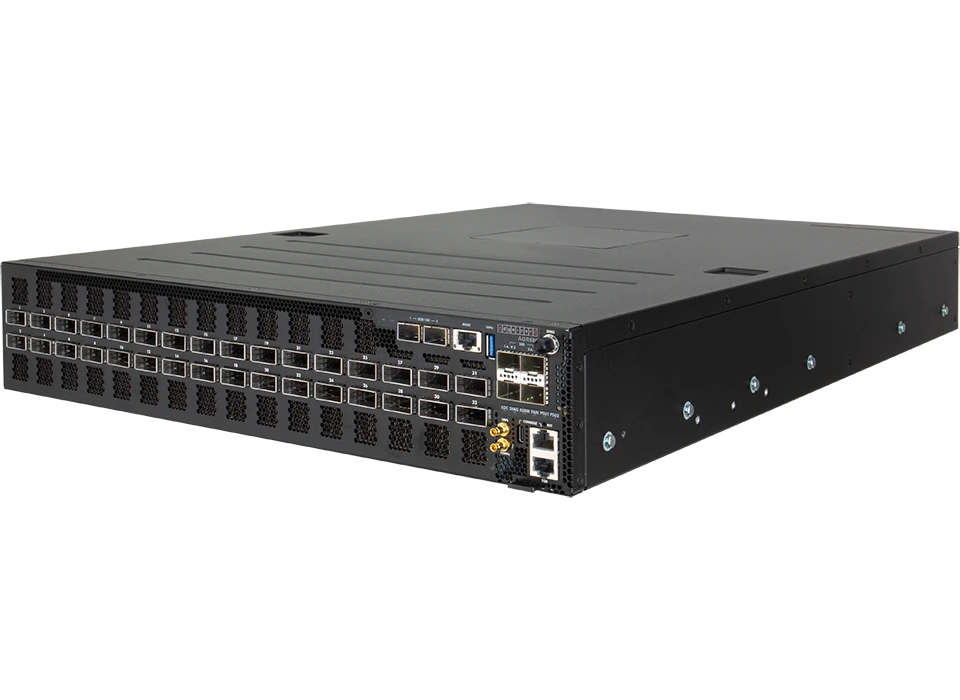

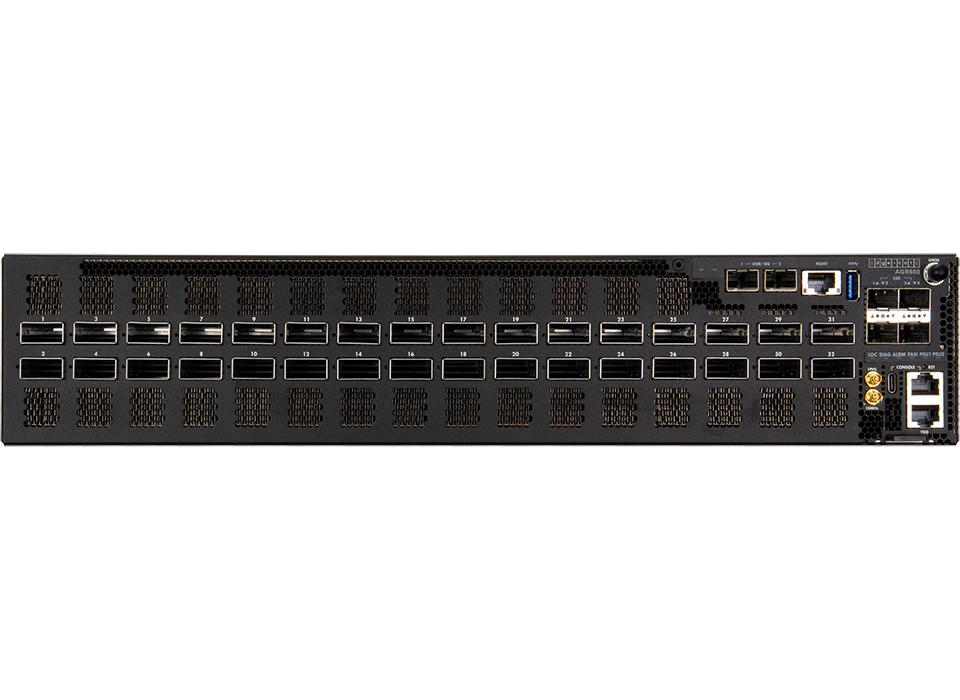

The AGR600 is a high-performance 100GbE to 800GbE aggregation router featuring 32 fixed 800GbE QSFP-DD interfaces in a compact 2RU form factor. Designed for standalone deployment, it is engineered for demanding environments such as large-scale data centers, GPU clusters, and service provider networks.

The platform is powered by the Broadcom StrataDNX™ Qumran3D silicon with XL MDB, leveraging up to 32GB of on-chip HBM deep packet buffering to ensure lossless forwarding and long-haul optical reach. This XL MDB architecture supports scalable L2/L3 database resources and deterministic performance, making it an ideal choice for roles including Spine switch, Data Center Interconnect (DCI), or Provider Edge (PE) router.

The AGR600 comes pre-loaded with the Open Network Install Environment (ONIE) , which enables the seamless installation of compatible Network Operating System (NOS) software, including various commercial NOS options.

Особенности

  • High-Performance Aggregation: Supports 100GbE to 800GbE connectivity, ideal for telecom operators and data center applications.
  • Advanced Silicon Architecture: Powered by one Broadcom StrataDNX™ Qumran3D with XL MDB for enhanced scalability and routing capacity.
  • Deep Packet Buffering: On-chip HBM provides up to 32GB of deep packet buffering for lossless forwarding.
  • Efficient Thermal Design: Available with front-to-back airflow SKU for optimized cooling in high-density deployments.
  • Redundant Power Options: Supports load-sharing, hot-swappable, and 1+1 redundant AC, ORv3, or -48VDC Telecom power supply units.
  • Modular Fan System: Equipped with hot-swappable, 3+1 redundant modular fans for high availability.
  • Precision Timing Support: Compatible with Synchronous Ethernet and IEEE 1588v2 Precision Time Protocol (PTP).
  • Fault Isolation: Capable of isolating malfunctioning transceivers to minimize traffic disruption and maintain service continuity.

Технические характеристики

Switch Ports 32 x 100/200/400/800G QSFP-DD800 ports
Чип коммутатора Broadcom BCM88870 Qumran3D
Processor Intel® Xeon® D Ice Lake 10-Core
BMC AST2620 with OpenBMC
Memory 2 x 32GB DDR4 SO-DIMM with ECC
Хранилище 2 x 480G m.2 NVMe SSD with RAID
TPM TPM2.0 SPI
Rack Форм-фактор 2 RU
Timing and Sync 1PPS, 10MHz, ToD, GNSS
Вентиляторы Hot-swappable 4 fans
Storage Temperature -40°C to 70°C
Рабочая температура 0° C ~ 45° C

Совместимый
Вариант ПО

    Совместимый
    Трансиверы

      Совместимый
      Кабели
