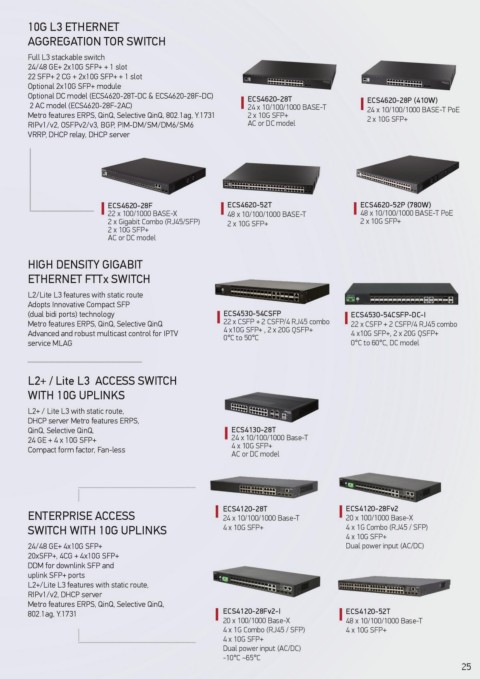

Page 25 - 2022-Q3 Catalogue-New

10G L3 ETHERNET
AGGREGATION TOR SWITCH

Full L3 stackable switch
24/48 GE+ 2x10G SFP+ + 1 slot
22 SFP+ 2 CG + 2x10G SFP+ + 1 slot
Optional 2x10G SFP+ module
Optional DC model (ECS4620-28T-DC & ECS4620-28F-DC) ECS4620-28T ECS4620-28P (410W)
2 AC model (ECS4620-28F-2AC) 24 x 10/100/1000 BASE-T 24 x 10/100/1000 BASE-T PoE
Metro features ERPS, QinQ, Selective QinQ, 802.1ag, Y.1731 2 x 10G SFP+ 2 x 10G SFP+
RIPv1/v2, OSFPv2/v3, BGP, PIM-DM/SM/DM6/SM6 AC or DC model
VRRP, DHCP relay, DHCP server

ECS4620-28F ECS4620-52T ECS4620-52P (780W)
22 x 100/1000 BASE-X 48 x 10/100/1000 BASE-T 48 x 10/100/1000 BASE-T PoE
2 x Gigabit Combo (RJ45/SFP) 2 x 10G SFP+ 2 x 10G SFP+
2 x 10G SFP+
AC or DC model

HIGH DENSITY GIGABIT
ETHERNET FTTx SWITCH

L2/Lite L3 features with static route
Adopts Innovative Compact SFP
(dual bidi ports) technology ECS4530-54CSFP ECS4530-54CSFP-DC-I
Metro features ERPS, QinQ, Selective QinQ 22 x CSFP + 2 CSFP/4 RJ45 combo 22 x CSFP + 2 CSFP/4 RJ45 combo
Advanced and robust multicast control for IPTV 4 x10G SFP+ , 2 x 20G QSFP+ 4 x10G SFP+, 2 x 20G QSFP+
0°C to 50°C
service MLAG 0°C to 60°C, DC model

L2+ / Lite L3 ACCESS SWITCH
WITH 10G UPLINKS

L2+ / Lite L3 with static route,
DHCP server Metro features ERPS,
QinQ, Selective QinQ, ECS4130-28T
24 GE + 4 x 10G SFP+ 24 x 10/100/1000 Base-T
Compact form factor, Fan-less 4 x 10G SFP+
AC or DC model

ECS4120-28T ECS4120-28Fv2
ENTERPRISE ACCESS 24 x 10/100/1000 Base-T 20 x 100/1000 Base-X
SWITCH WITH 10G UPLINKS 4 x 10G SFP+ 4 x 1G Combo (RJ45 / SFP)
4 x 10G SFP+
24/48 GE+ 4x10G SFP+ Dual power input (AC/DC)
20xSFP+, 4CG + 4x10G SFP+
DDM for downlink SFP and
uplink SFP+ ports
L2+/Lite L3 features with static route,
RIPv1/v2, DHCP server
Metro features ERPS, QinQ, Selective QinQ,
802.1ag, Y.1731 ECS4120-28Fv2-I ECS4120-52T
20 x 100/1000 Base-X 48 x 10/100/1000 Base-T
4 x 1G Combo (RJ45 / SFP) 4 x 10G SFP+
4 x 10G SFP+
Dual power input (AC/DC)
-10°C ~65°C
