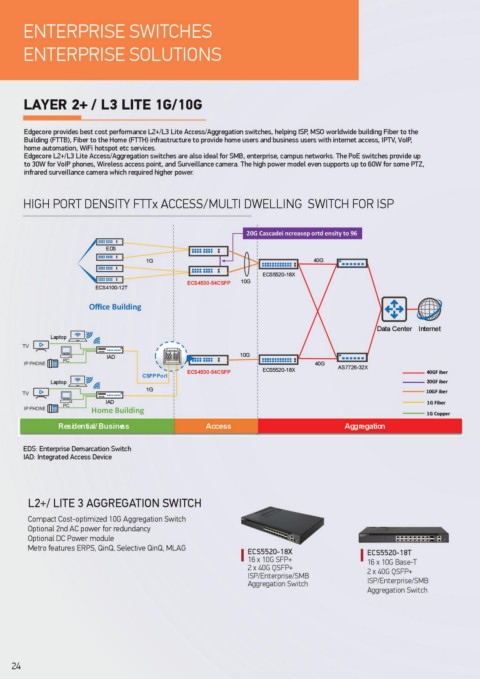

ENTERPRISE SWITCHES

ENTERPRISE SOLUTIONS

LAYER 2+ / L3 LITE 1G/10G

Edgecore provides best cost performance L2+/L3 Lite Access/Aggregation switches, helping ISP, MSO worldwide building Fiber to the
Building (FTTB), Fiber to the Home (FTTH) infrastructure to provide home users and business users with internet access, IPTV, VoIP,
home automation, WiFi hotspot etc services.
Edgecore L2+/L3 Lite Access/Aggregation switches are also ideal for SMB, enterprise, campus networks. The PoE switches provide up
to 30W for VoIP phones, Wireless access point, and Surveillance camera. The high power model even supports up to 60W for some PTZ,
infrared surveillance camera which required higher power.

HIGH PORT DENSITY FTTx ACCESS/MULTI DWELLING SWITCH FOR ISP

20G Cascadei ncreasep ortd ensity to 96

EDS
1G 40G
ECS5520-18X
ECS4530-54CSFP 10G
ECS4100-12T

O e Building

Data Center Internet
Laptop
TV
IAD 10G
PC
IP PHONE 40G AS7726-32X
ECS4530-54CSFP ECS5520-18X 40GF iber
CSFPPort
Laptop 20GF iber
1G
TV 10GF iber
IAD 1G Fiber
PC
IP PHONE Home Building 1G Copper
Residential/ Business Access Aggregation

EDS: Enterprise Demarcation Switch
IAD: Integrated Access Device

L2+/ LITE 3 AGGREGATION SWITCH

Compact Cost-optimized 10G Aggregation Switch
Optional 2nd AC power for redundancy
Optional DC Power module
Metro features ERPS, QinQ, Selective QinQ, MLAG ECS5520-18X ECS5520-18T
16 x 10G SFP+ 16 x 10G Base-T
2 x 40G QSFP+ 2 x 40G QSFP+
ISP/Enterprise/SMB
Aggregation Switch ISP/Enterprise/SMB
Aggregation Switch
