GE Access Networking Solution for ISPs, MSOs and SMB/Enterprises Networks

Overview
The Edgecore ECS4100-28T/52T switch is a Gigabit Ethernet access switch with 4 x 1G uplink ports. These ECS4100 series switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users triple-play services with up to a Gigabit of bandwidth while ECS4120 series offer the options of 4 x 10G uplink bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The ECS4130 and ECS4150 series Gigabit Ethernet access switches come equipped with 4 x 10G uplinks. The switches are packed with features that deliver high availability, comprehensive security, robust multicast control, and advanced QoS to the network edge, while maintaining simple management.

Features and and Benefit
  • Enhance robustness of multicast control to provide high quality IP-TV service via IGMP snooping, IGMP group, Multicast VLAN Registration (MVR)
  • Ensure fully security of the services provider’s network against attack, offering port security limit, IEEE802.1X port-based or MAC-based access control, DHCP Snooping, IP Source Guard, Access Control List (ACL), Guest VLAN, Dynamic ARP Inspection (DAI), and SSH/SSL/HTTPS encrypt Telnet and Web access.
  • Ease the management and troubleshooting with superior management, including industry-standard CLI, web interface, and SNMPv1, 2c, 3 and 4-group RMON.
  • Differentiate network traffic and service with the advanced QoS features, such as Priority Queues, Traffic classification, Traffic scheduling, Rate Limiting
  • Service providers can expand their business from home user to business user by providing more reliable and resiliency network (ITU-T G.8032 ERPS), Connectivity Fault Management (802.1ag, Y.1731) and ensuring SLA

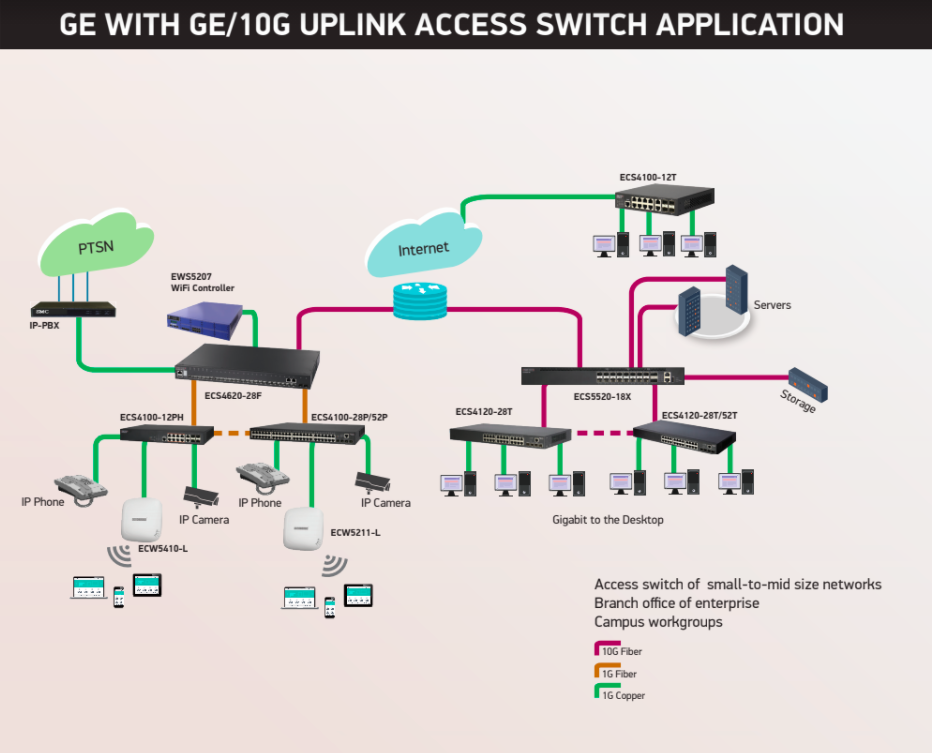

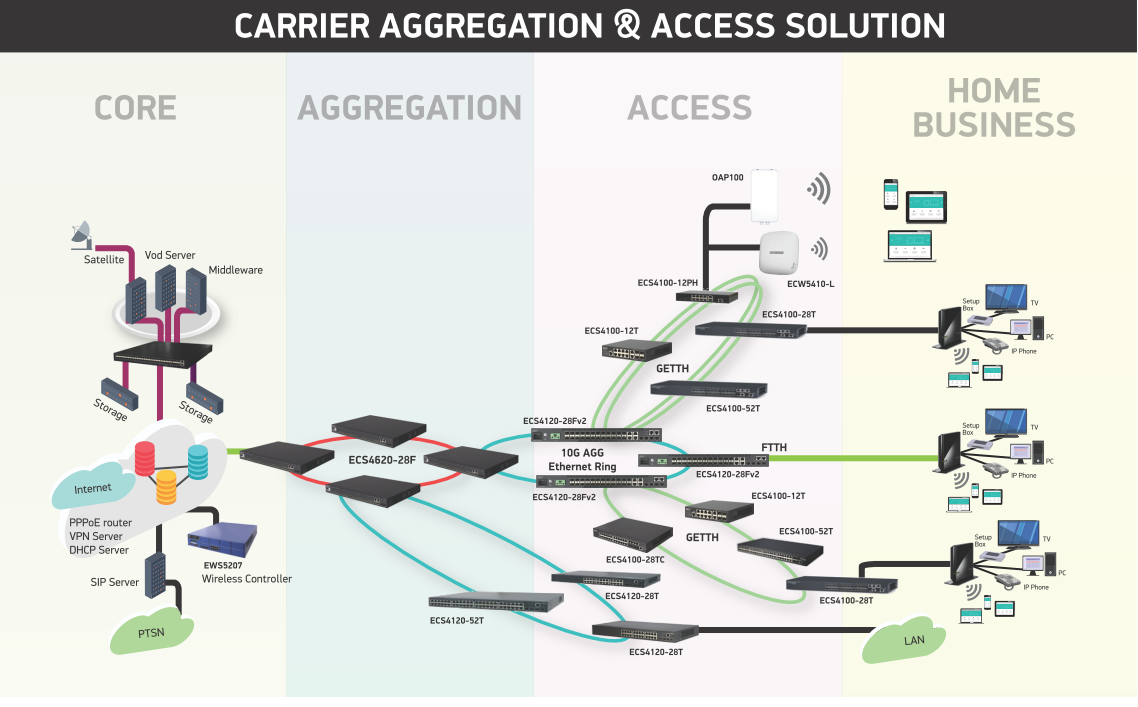

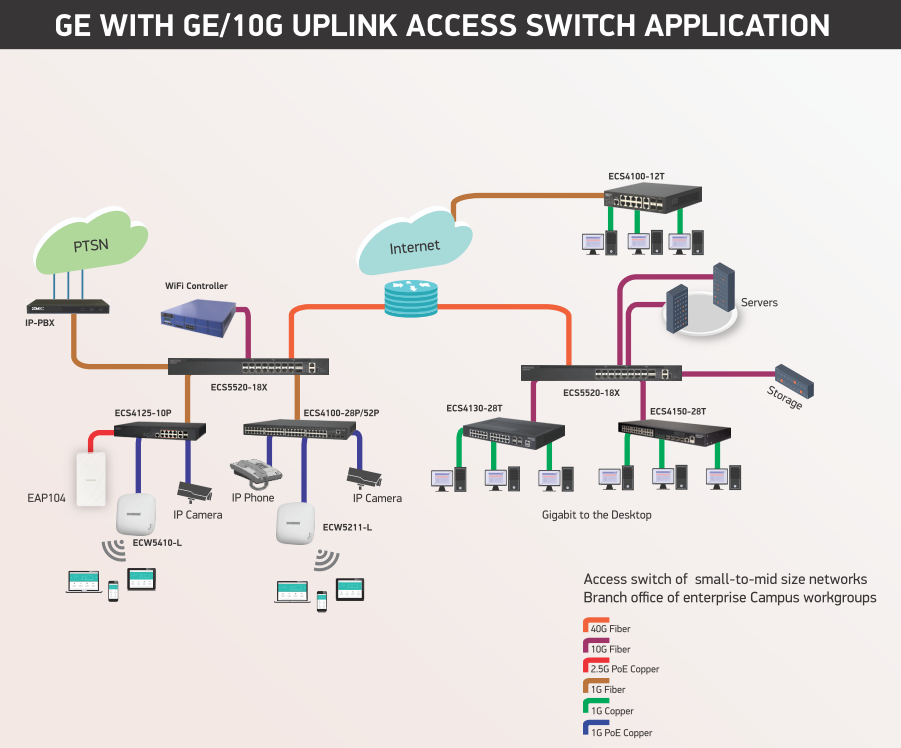

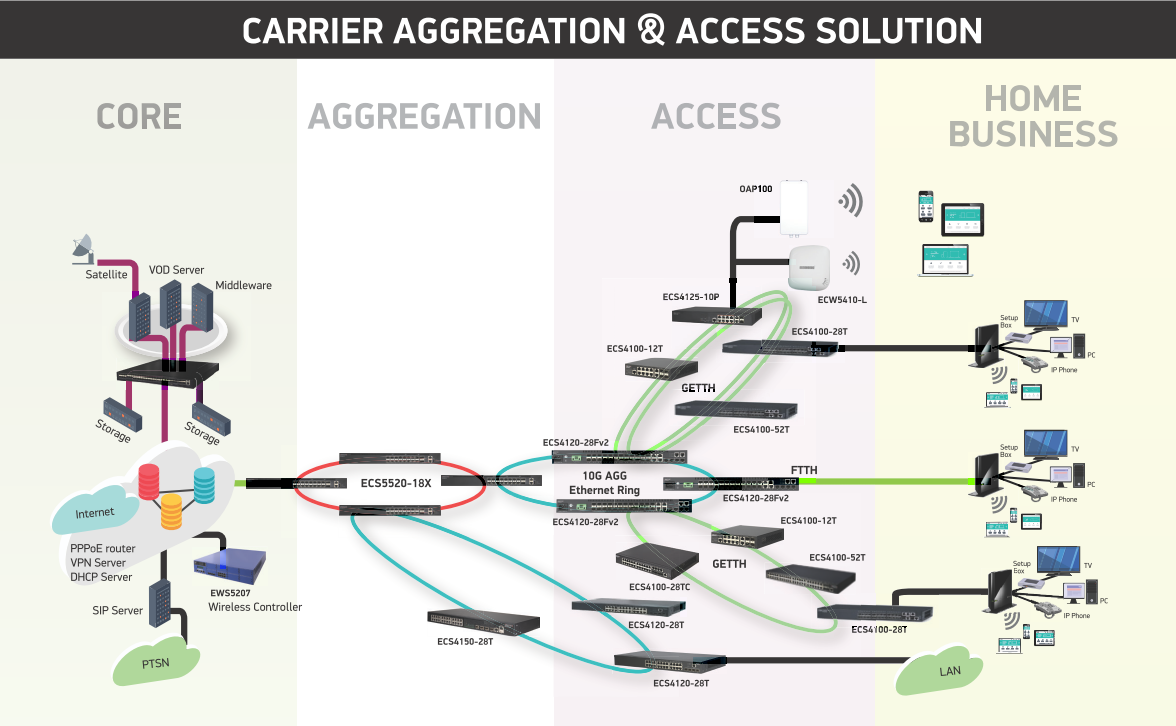

Network Application




ECS4100, ECS4120, ECS4125, ECS4130 and ECS4150 Series


ECS4100 Series
*ECS4100-12T         L2+ Gigabit Ethernet Access Switch - 8 x GE + 2 x GE SFP + 2CG
*ECS4100-12PH       L2+ Gigabit Ethernet Access PoE Switch - 8 x PoE GE + 2 combo and 2 FE/1G uplink SFP ports
*ECS4100-28T         L2+ Gigabit Ethernet Access Switch - 24 x GE + 4 x SFP ports
  ECS4100-28TC      L2+ Gigabit Ethernet Access Switch - 24 x GE + 4 x 100M/1G uplink combo ports
*ECS4100-28P         L2+ Gigabit Ethernet Access PoE Switch - 24 x PoE GE + 4 x 100M/1G uplink SFP ports
*ECS4100-52T         L2+ Gigabit Ethernet Access Switch - 48 x GE + 4 x SFP ports
*ECS4100-52P         L2+ Gigabit Ethernet Access PoE Switch - 48 x PoE GE + 4 x 100M/1G uplink SFP ports

ECS4120 Series
*ECS4120-28T         L2+ Gigabit Ethernet Access Switch - 24 x GE + 4 x 10G SFP+ ports
*ECS4120-28Fv2      L2+ Gigabit Ethernet Access Switch - 20 x GE SFP+ 4CG + 4 10G SFP+ ports
*ECS4120-28Fv2-I    L2+ Enhanced Temperature Gigabit Ethernet Access Switch - 20 x GE SFP+ 4CG + 4 10G SFP+ ports
*ECS4120-52T         L2+ Gigabit Ethernet Access Switch - 48 x GE + 4 x 10G SFP+ ports

ECS4125 Series
*ECS4125-10P          2.5G L2 Ultra PoE Gigabit Ethernet Access Switch, 8 x 1G/2.5G RJ45+ 2 x 10G SFP+ uplink ports

ECS4130 Series
ECS4130-28T           L2+/L3 Lite Gigabit Ethernet Access Switch, Compact Size- 24 x GE + 4 x 10G SFP+ ports
ECS4130-28T-DC      L2+/L3 Lite Gigabit Ethernet Access Switch, Compact Size- 24 x GE + 4 x 10G SFP+ ports

ECS4150 Series
*ECS4150-28T          L2+/L3 Lite Gigabit Ethernet Access Switch, 24 x GE + 4 x 10G SFP+ uplink ports
*ECS4150-28P          L2+/L3 Lite Gigabit Ethernet Access Switch, 24 x PoE GE + 4 x 10G SFP+ uplink ports

Remark: *support ecCLOUD
