Edgecore Introduces the Multi-G Ultra PoE Network Solution for SMB, Enterprise, and Campus Networks


Edgecore Introduces the Advanced Multi-G Ultra PoE Network Solution for SMB, Enterprise, and Campus Networks

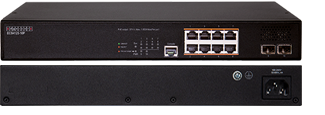

The Edgecore ECS4125-10P switch is a 1/2.5G Multi-Gigabit Ethernet access switch with 80 Gbps switching capacity. The switch delivers wire-speed switching performance on all 2.5 Gigabit ports, taking full advantage of existing high-performance 2.5 Gigabit 11ax Wi-Fi APs etc, significantly improving the responsiveness of applications and file transfer times.

The two 10G SFP+ ports provide uplink flexibility, allowing the insertion of fiber or copper gigabit transceivers, to create up to 20 Gbps high-speed uplinks to corporates or campus networks, reducing bottlenecks and increasing the performance of the access network.

The ECS4125-10P is an ideal 2.5G PoE access switch for SMB, enterprise, and campus networks, it can provide up to 60 W of power to attached devices with a total power budget of 240 W. PoE eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

The ECS4125-10P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.




      8 × 1G/2.5G RJ45 Ports

      2 × 10G SFP+ Uplink Ports

      PoE++ Support for Wi-Fi 6 APs

      240W 802.3af/at/bt PoE

      80G Switching Capacity

      Deliver up to 30 W on 8 ports, or 60 W on 4 ports



Edgecore Debuts the First-Ever Enterprise PoE Network Switch with TIP OpenLAN Switching Support

ECS4125-10P is the world's first enterprise PoE network switch that supports the Telecom Infra Project (TIP) OpenLAN Switching (OLS). With the ECS4125-10P, IT professionals can enjoy a competitive and differentiated wiring closet switching solution, enabling more diverse and flexible network deployment options. The switch can support all TIP OpenWiFi devices, providing an open network solution that spans both wired and wireless environments.
Read more here

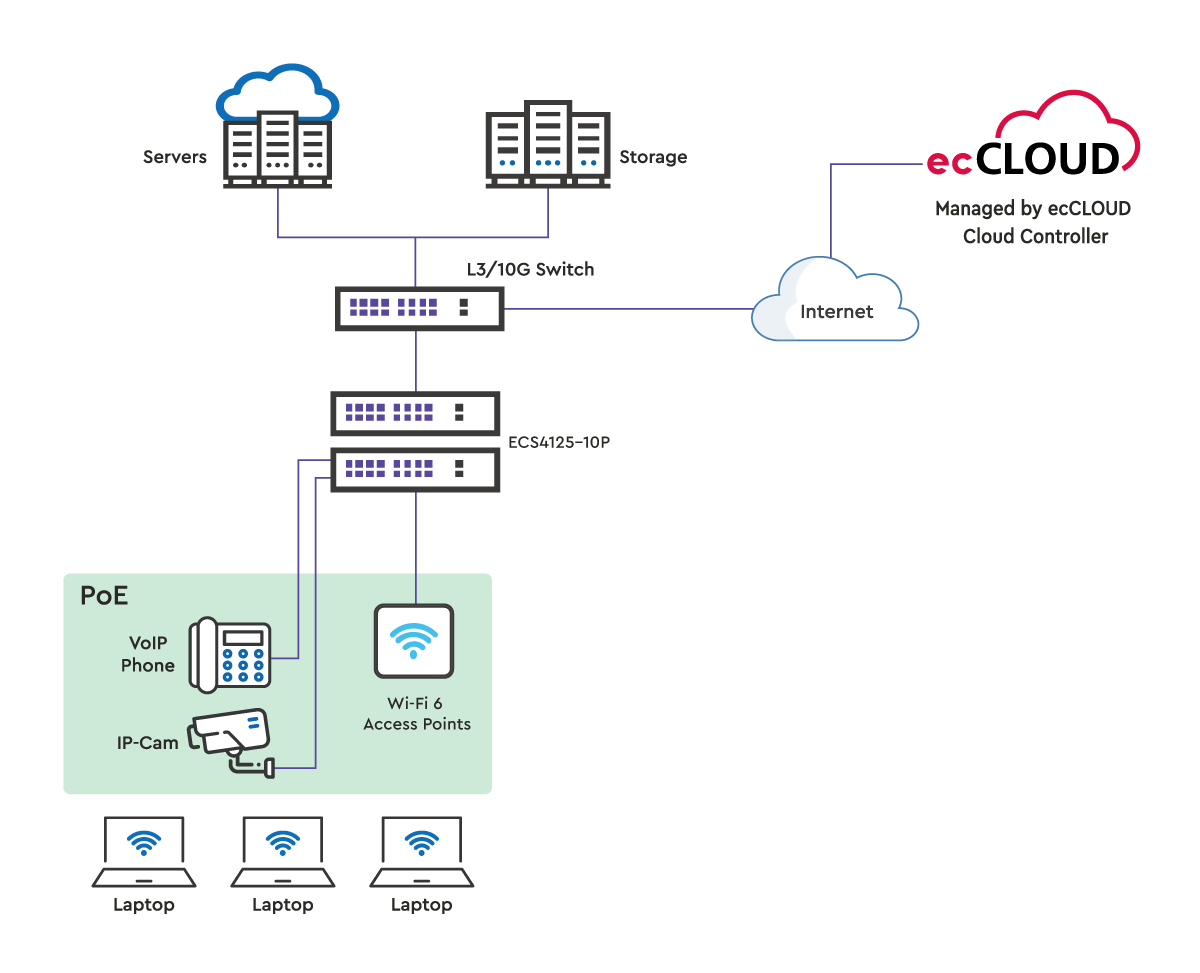

Solution Architectures
