ECS4150 Series - The Latest Generation L2+/ Lite L3 Gigabit Ethernet Access Switch with 10G Uplinks





ECS4150 Series - the Latest Generation L2+/ Lite L3 Gigabit Ethernet Access Switch with 10G Uplinks

The ECS4150 series is a high-performance and energy-efficient Gigabit Ethernet switch, ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users Triple-play services and business users Virtual Private Network services with up to Gigabit bandwidth. It is also ideal Gigabit access switch for SMB, Enterprise and Campus network.


The ECS4150 Layer 2+ Gigabit Ethernet access switches come equipped with four 10G uplinks and boast low power consumption. Additionally, the ECS4150-28T model features a fan-less and noiseless design, while the ECS4150-28P model comes with fan speed control. The switches are packed with features that deliver high availability, comprehensive security, robust multicast control, and advanced QoS to the network edge, while maintaining simple management. Read more






ECS4150-28T

      24 10/100/1000 Base-T (RJ-45) ports, 4 10G SFP+ Uplink ports

      Fan-less & noiseless Design

      Fast Ring Recover Time < 50ms (ERPS)

      Multi- Management (CLI/ WEB/ SNMP/ ecCLOUD )

      L2+/ Lite L3 features

      CE/ FCC/ UL/ CB/ BSMI

      10KB Jumbo Frame

      16K MAC Address



ECS4150-28P

     24 10/100/1000 Base-T (RJ-45) ports with PoE support, 4 10G SFP+ Uplink ports

     30 Watts PoE+ (IEEE 802.3af/at compliance)

     Power Budget 370W

     Fan-control Design

     Fast Ring Recover Time < 50ms (ERPS)

     L2+/ Lite L3 features

     Multi-Management (CLI/ WEB/ SNMP/ ecCLOUD)

     CE/ FCC/ UL/ CB/ BSMI



Ideal Use Cases

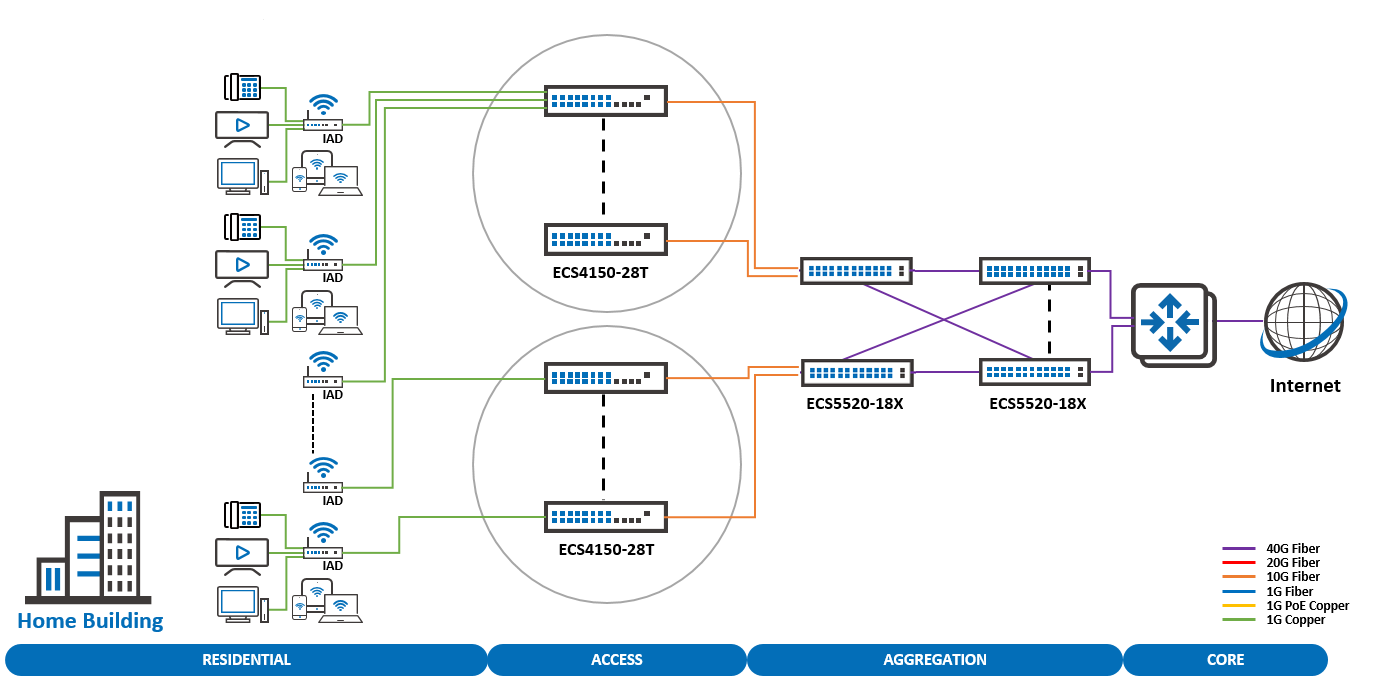

Application 1 - Ethernet to the Building

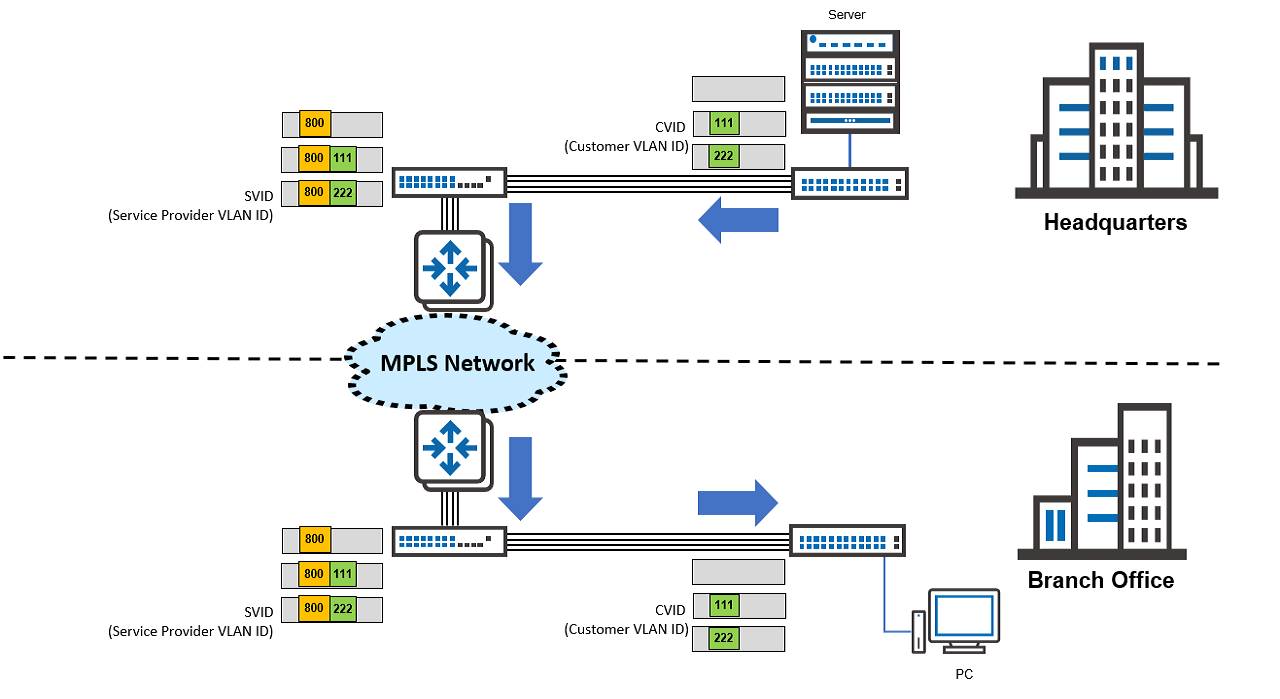

Application 2 - FTTB Access Switch L2 Virtual Private Network for Business Users

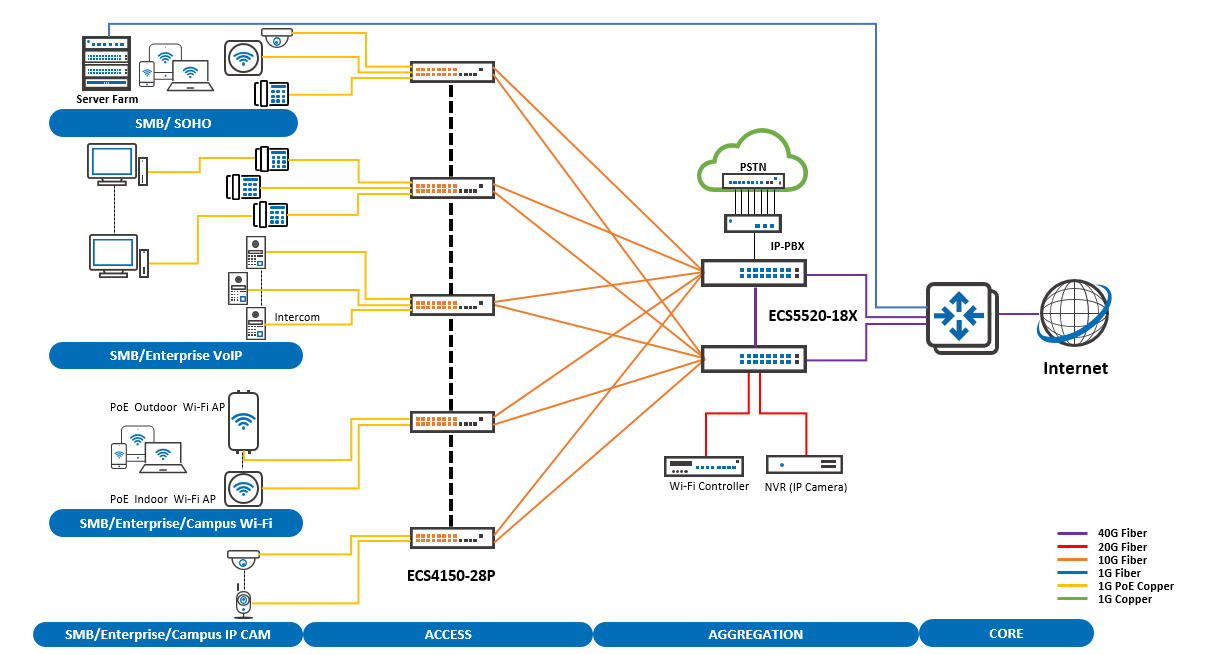

Application 3 - PoE Solution for SME / Enterprise / Campus
