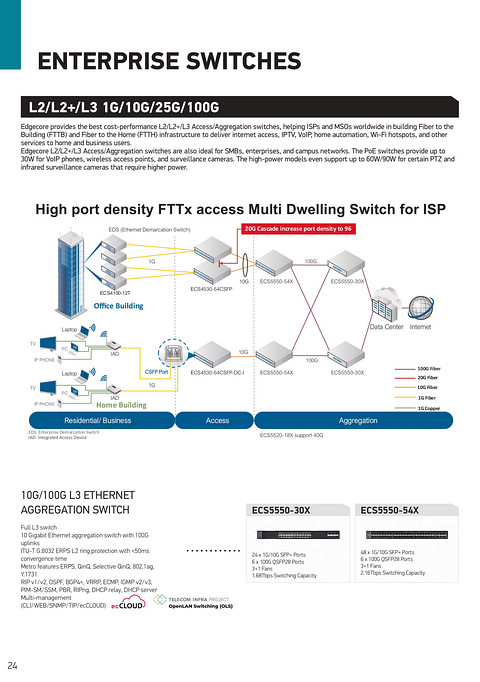

ENTERPRISE SWITCHES






                L2/L2+/L3 1G/10G/25G/100G

              Edgecore provides the best cost-performance L2/L2+/L3 Access/Aggregation switches, helping ISPs and MSOs worldwide in building Fiber to the
              Building (FTTB) and Fiber to the Home (FTTH) infrastructure to deliver internet access, IPTV, VoIP, home automation, Wi-Fi hotspots, and other
              services to home and business users.
              Edgecore L2/L2+/L3 Access/Aggregation switches are also ideal for SMBs, enterprises, and campus networks. The PoE switches provide up to
              30W for VoIP phones, wireless access points, and surveillance cameras. The high-power models even support up to 60W/90W for certain PTZ and
              infrared surveillance cameras that require higher power.



                 High port density FTTx access Multi Dwelling Switch for ISP



                                   EDS (Ethemet Demarcation Switch)  20G Cascade increase port density to 96


                                             1G                                    100G


                                                             -     10G   ECS5550-54X      ECS5550-30X
                                                       E ECS4530-54CSFP
                                 ECS4100-12T
                                Office Building


                        Laptop                                                                      Data Center  Internet
                TV
                        PC
                                    IAD                            10G
                 IP PHONE                                                           100G
                                                             -                                                 100G Fiber
                        Laptop              CSFP Port  E ECS4530-54CSFP-DC-I  ECS5550-54X  ECS5550-30X
                                                                                                               20G Fiber
                TV                           1G                                                                10G Fiber
                        PC
                                    IAD                                                                        1G Fiber
                 IP PHONE       Home Building                                                                  1G Copper
                        Residential/ Business              Access                           Aggregation
                EDS: Enterprise Demarcation Switch
                IAD: Integrated Access Device                            ECS5520-18X support 40G







              10G/100G L3 ETHERNET
              AGGREGATION SWITCH                                       ECS5550-30X               ECS5550-54X

              Full L3 switch
              10 Gigabit Ethernet aggregation switch with 100G
              uplinks
              ITU-T G.8032 ERPS L2 ring protection with <50ms          24 x 1G/10G SFP+ Ports    48 x 1G/10G SFP+ Ports
              convergence time                                         6 x 100G QSFP28 Ports     6 x 100G QSFP28 Ports
              Metro features ERPS, QinQ, Selective QinQ, 802.1ag,      3+1 Fans                  3+1 Fans
              Y.1731                                                   1.68Tbps Switching Capacity  2.16Tbps Switching Capacity
              RIP v1/v2, OSPF, BGP4+, VRRP, ECMP, IGMP v2/v3,
              PIM-SM/SSM, PBR, RIPng, DHCP relay, DHCP server
              Multi-management
              (CLI/WEB/SNMP/TIP/ecCLOUD)
