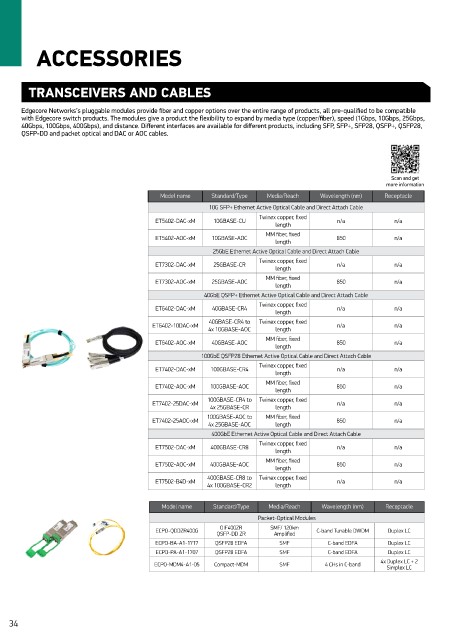

Page 34 - Edgecore Product Catalogue 2024

ACCESSORIES

TRANSCEIVERS AND CABLES

Edgecore Networks’s pluggable modules provide fiber and copper options over the entire range of products, all pre-qualified to be compatible
with Edgecore switch products. The modules give a product the flexibility to expand by media type (copper/fiber), speed (1Gbps, 10Gbps, 25Gbps,
40Gbps, 100Gbps, 400Gbps), and distance. Different interfaces are available for different products, including SFP, SFP+, SFP28, QSFP+, QSFP28,
QSFP-DD and packet optical and DAC or AOC cables.

Scan and get
more information
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
10G SFP+ Ethernet Active Optical Cable and Direct Attach Cable
Twinex copper, fixed
ET5402-DAC-xM 10GBASE-CU n/a n/a
length
MM fiber, fixed
ET5402-AOC-xM 10GBASE-AOC 850 n/a
length
25GbE Ethernet Active Optical Cable and Direct Attach Cable
Twinex copper, fixed
ET7302-DAC-xM 25GBASE-CR n/a n/a
length
MM fiber, fixed
ET7302-AOC-xM 25GBASE-AOC 850 n/a
length
40GbE QSFP+ Ethernet Active Optical Cable and Direct Attach Cable
Twinex copper, fixed
ET6402-DAC-xM 40GBASE-CR4 n/a n/a
length
40GBASE-CR4 to Twinex copper, fixed
ET6402-10DAC-xM n/a n/a
4x 10GBASE-AOC length
MM fiber, fixed
ET6402-AOC-xM 40GBASE-AOC 850 n/a
length
100GbE QSFP28 Ethernet Active Optical Cable and Direct Attach Cable
Twinex copper, fixed
ET7402-DAC-xM 100GBASE-CR4 n/a n/a
length
MM fiber, fixed
ET7402-AOC-xM 100GBASE-AOC 850 n/a
length
100GBASE-CR4 to Twinex copper, fixed
ET7402-25DAC-xM n/a n/a
4x 25GBASE-CR length
100GBASE-AOC to MM fiber, fixed
ET7402-25AOC-xM 850 n/a
4x 25GBASE-AOC length
400GbE Ethernet Active Optical Cable and Direct Attach Cable
Twinex copper, fixed
ET7502-DAC-xM 400GBASE-CR8 n/a n/a
length
MM fiber, fixed
ET7502-AOC-xM 400GBASE-AOC 850 n/a
length
400GBASE-CR8 to Twinex copper, fixed
ET7502-B4D-xM n/a n/a
4x 100GBASE-CR2 length
Model name Standard/Type Media/Reach Wavelength (nm) Receptacle
Packet-Optical Modules
OIF400ZR SMF/ 120km
ECPO-QDDZR400G C-band Tunable DWDM Duplex LC
QSFP-DD ZR Amplified
ECPO-BA-A1-1717 QSFP28 EDFA SMF C-band EDFA Duplex LC
ECPO-PA-A1-1707 QSFP28 EDFA SMF C-band EDFA Duplex LC
4x Duplex LC + 2
ECPO-MDM4-A1-05 Compact-MDM SMF 4 CHs in C-band
Simplex LC
