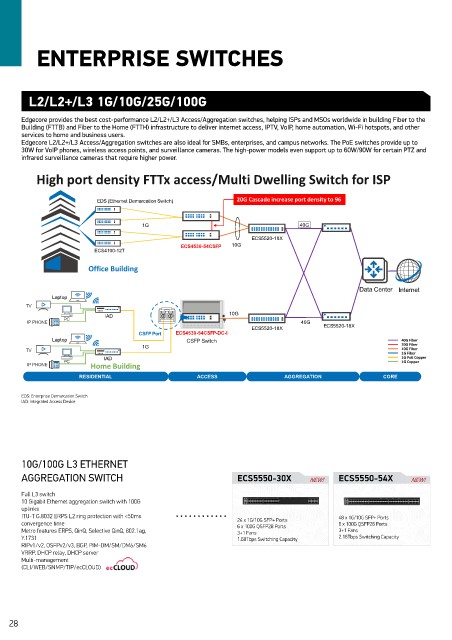

Page 28 - Edgecore Product Catalogue 2024
P. 28

ENTERPRISE SWITCHES






         L2/L2+/L3 1G/10G/25G/100G


       Edgecore provides the best cost-performance L2/L2+/L3 Access/Aggregation switches, helping ISPs and MSOs worldwide in building Fiber to the
       Building (FTTB) and Fiber to the Home (FTTH) infrastructure to deliver internet access, IPTV, VoIP, home automation, Wi-Fi hotspots, and other
       services to home and business users.
       Edgecore L2/L2+/L3 Access/Aggregation switches are also ideal for SMBs, enterprises, and campus networks. The PoE switches provide up to
       30W for VoIP phones, wireless access points, and surveillance cameras. The high-power models even support up to 60W/90W for certain PTZ and
       infrared surveillance cameras that require higher power.

           High port density FTTx access/Multi Dwelling Switch for ISP


                           EDS (Ethernet Demarcation Switch)   20G Cascade increase port density to 96


                                      1G                                        40G

                                                                   ECS5520-18X
                                                 ECS4530-54CSFP  10G
                          ECS4100-12T
                        Office Building


                                                                                                Data Center Internet
               Laptop
        TV
                             IAD                             10G
                  PC
        IP PHONE                                                                40G
                                                                   ECS5520-18X        ECS5520-18X
                                      CSFP Port  ECS4530-54CSFP-DC-I
               Laptop                             CSFP Switch                                              40G Fiber
                                      1G                                                                   20G Fiber
                                                                                                           10G Fiber
        TV
                                                                                                           1G Fiber
                            IAD                                                                            1G PoE Copper
                                                                                                           1G Copper
        IP PHONE  PC     Home Building
                      RESIDENTIAL                    ACCESS                 AGGREGATION               CORE
       EDS: Enterprise Demarcation Switch
       IAD: Integrated Access Device







       10G/100G L3 ETHERNET

       AGGREGATION SWITCH                                       ECS5550-30X        NEW!   ECS5550-54X        NEW!

       Full L3 switch
       10 Gigabit Ethernet aggregation switch with 100G
       uplinks
       ITU-T G.8032 ERPS L2 ring protection with <50ms          24 x 1G/10G SFP+ Ports    48 x 1G/10G SFP+ Ports
       convergence time                                         6 x 100G QSFP28 Ports     6 x 100G QSFP28 Ports
       Metro features ERPS, QinQ, Selective QinQ, 802.1ag,      3+1 Fans                  3+1 Fans
       Y.1731                                                   1.68Tbps Switching Capacity  2.16Tbps Switching Capacity
       RIPv1/v2, OSFPv2/v3, BGP, PIM-DM/SM/DM6/SM6
       VRRP, DHCP relay, DHCP server
       Multi-management
       (CLI/WEB/SNMP/TIP/ecCLOUD)
