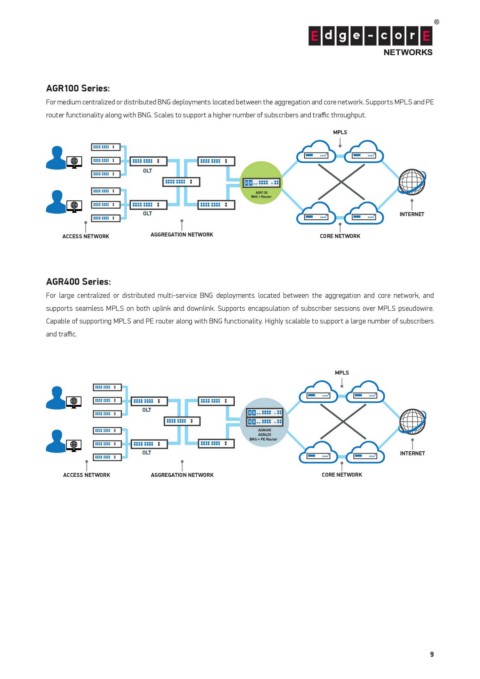

AGR100 Series:
For medium centralized or distributed BNG deployments located between the aggregation and core network. Supports MPLS and PE
router functionality along with BNG. Scales to support a higher number of subscribers and traffic throughput.
MPLS
OLT
AGR130
BNG + Router
OLT INTERNET
ACCESS NETWORK AGGREGATION NETWORK CORE NETWORK
AGR400 Series:
For large centralized or distributed multi-service BNG deployments located between the aggregation and core network, and
supports seamless MPLS on both uplink and downlink. Supports encapsulation of subscriber sessions over MPLS pseudowire.
Capable of supporting MPLS and PE router along with BNG functionality. Highly scalable to support a large number of subscribers
and traffic.
MPLS
OLT
AGR400
AGR420
BNG + PE Router
OLT INTERNET
ACCESS NETWORK AGGREGATION NETWORK CORE NETWORK
