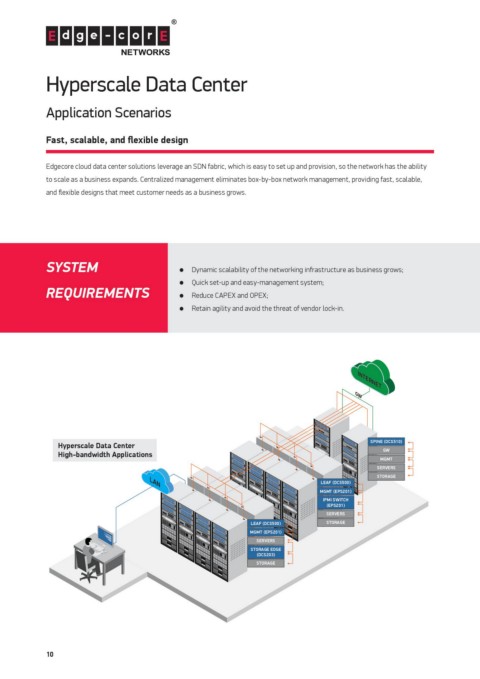

Hyperscale Data Center



            Application Scenarios



            Fast, scalable, and flexible design


            Edgecore cloud data center solutions leverage an SDN fabric, which is easy to set up and provision, so the network has the ability
            to scale as a business expands. Centralized management eliminates box-by-box network management, providing fast, scalable,
            and flexible designs that meet customer needs as a business grows.









            SYSTEM                           ●   Dynamic scalability of the networking infrastructure as business grows;

                                             ●   Quick set-up and easy-management system;
            REQUIREMENTS                     ●   Reduce CAPEX and OPEX;

                                             ●   Retain agility and avoid the threat of vendor lock-in.










                                                                                          INTERNET
                                                                                         GW





                                                                                             SPINE (DCS510)
               Hyperscale Data Center
               High-bandwidth Applications                                                      GW
                                                                                               MGMT
                                                                                               SERVERS
                                                                                               STORAGE
                                      LAN                                        LEAF (DCS500)
                                                                                MGMT (EPS201)
                                                                                 IPMI SWITCH
                                                                                  (EPS201)
                                                                                  SERVERS
                                                               LEAF (DCS500)      STORAGE
                                                               MGMT (EPS201)
                                                                 SERVERS
                                                               STORAGE EDGE
                                                                 (DCS203)
                                                                 STORAGE
