Open Networking Solution Designed for Mobile xHaul Transport Application
|
To meet the demands for new 5G infrastructure, mobile network operators now have embraced open networking and disaggregation as a solution. To adopt 5G networks, there is not only increased traffic and data rates to accommodate, but also a vast increase in the number of small cell sites. Operators need a cost-effective solution to facilitate greater innovation as well as reduce both CAPEX and OPEX without compromising performance and quality.
Edgecore disaggregated cell site gateway – CSR series, is designed with sufficient port density and speeds for 5G networks, and is compact and efficient for easy deployment at cell sites. It supports Layer 2, Layer 3, and MPLS features - with time synchronization protocols such as IEEE-1588 v2 and Synchronous Ethernet with Class C accuracy. In addition, Edgecore CSR series based on the latest generation chipset provides 802.1CM Time Sensitive Networking (TSN) interface, supporting SRv6 technology and eCPRI encapsulation for upcoming xHaul applications and deployments.
Edgecore comprehensive, end-to-end telco solution, from access layer to aggregation layer, all the way to the core, provides flexibility and scalability for xHaul transport network to best meet operator’s requirements.
|

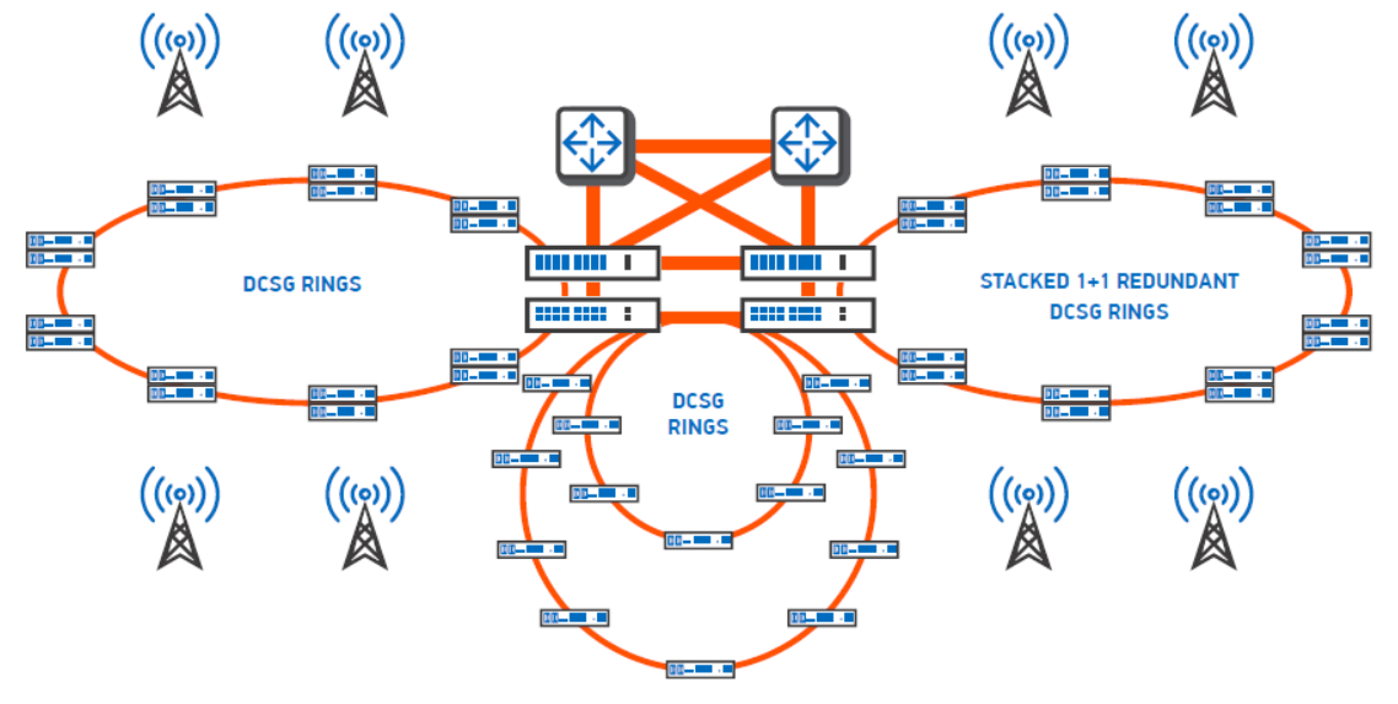

Mobile Backhaul (Mass Deploying)
|
 |
| |
Edgecore Disaggregated Cell Site Routers Family
|
|
• Flexible Port Configuration 1G, 10G,
25G, 100G, 400G
• Broadcom® DNX Qumran
• Intel® Xeon® Family CPU
|
|
• IEEE1588v2 with SyncE
• Temperature Hardened Design
• Low Latency Design
|
| |
 |
|

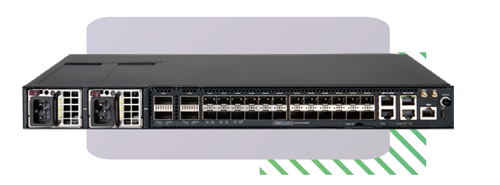

• 24 x 25G SFP28
• 2 x 100G QSFP28
• 2 x 400G High-power QSFP-DD ports
• Broadcom® Qumran-2A
• 5G Mobile xHaul Networks
|
| |
 |
|
• 16 x 10G SFP+
• 8 x 25G SFP28
• 2 x 100G QSFP28 ports
• Broadcom® Qumran-AX
• GNSS Antenna
|
| |
 |
|

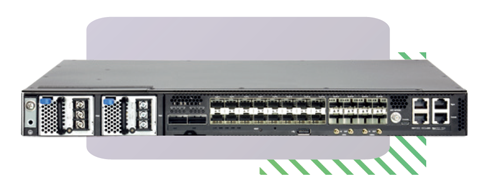

• 20 x 1G / 10G SFP+
• 4 x 1G / 10G / 25G SFP28
• 3 x 100G QSFP28 ports
• Broadcom® Qumran-AX
• Stackable Model, GNSS Antenna
|
| |
 |
|

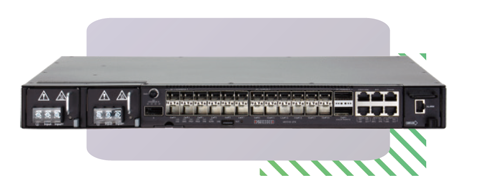

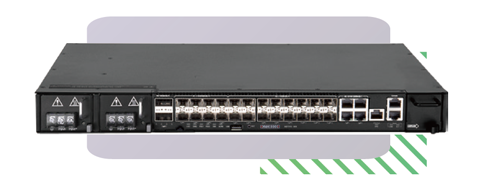

• 4 x 1G RJ45
• 16 x 1G/10G SFP+
• 8 x 1G/10G/25G SFP28
• 2 x 100G QSFP28 ports
• Broadcom® Qumran-AX
|
| |
 |
|

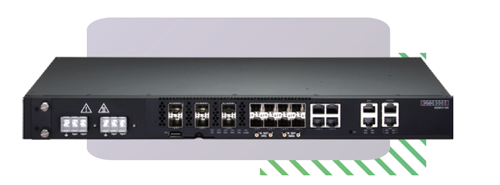

• 6 x 1G/10G SFP+
• 8 x 1G SFP
• 4 x 1G RJ45 ports
• Broadcom® Qumran-UX
• Compact Design, Lite Model
|
| |
Video - Edgecore Disaggregated Cell Site Gateway Solution
|
 |
| |
