Edgecore Introduces New Gigabit Ethernet Access Switches with Six 25G Uplinks for Unparalleled Connectivity, Tailor-Made for ISPs and MSOs



Edgecore Introduces New Gigabit Ethernet Access Switches with Six 25G Uplinks for Unparalleled Connectivity, Tailor-Made for ISPs and MSOs

Edgecore is pleased to present the latest additions to its ECS4150 enterprise switch lineup, the ECS4150-54T and ECS4150-54P. The new ECS4150-54T and ECS4150-54P elevate uplinks to 25G, significantly boosting bandwidth and enhancing packet switching efficiency. The ECS4150 series is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. It is ideal for ISPs and MSOs to provide home users Triple-play services and business users Virtual Private Network services. It is also an ideal Gigabit access switch for SMB, Enterprise and Campus network.

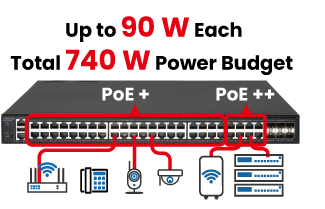

The PoE model (ECS4150-54P) supports 802.3af/at/bt PoE, enabling power to be supplied to multiple high-power devices such as access points, VoIP phones, surveillance cameras, IoT devices, and more.

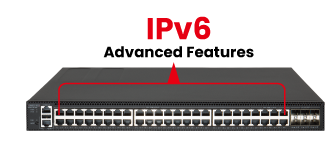

The ECS4150 series supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

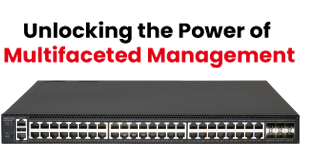

Support for multiple management options – CLI, web GUI, SNMP, and Edgecore ecCLOUD. With Edgecore ecCLOUD, the IT administrator can centrally manage all Edgecore switches by bulk configuration of automatic VLAN configuration and synchronization, port security, and power management, reducing deployment time and ensuring network reliability.

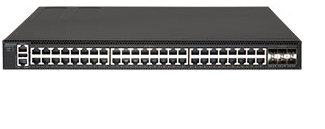

ECS4150-54T

•      48 × 1GbE RJ-45 Ports

•      6 × 25G SFP28 Uplink Ports

•      Enhanced Security, IPv6, and Multicast Features

•      Simple Management (CLI, SNMP, Web, ecCLOUD, TIP OLS)

•      Ideal Gigabit Access Switch for ISPs, MSOs, and Cloud Edge Access

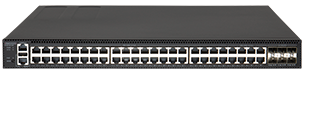

ECS4150-54P

•      48 × 1GbE RJ-45 Ports

•      6 × 25G SFP28 Uplink Ports

•      90 Watts PoE+ (IEEE 802.3af/at/bt compliance)

•      Power Budget 740W

•      Simple Management (CLI, SNMP, Web, ecCLOUD, TIP OLS)

•      Ideal Enterprise PoE Switch for SMB, Enterprise, and Campus Networks

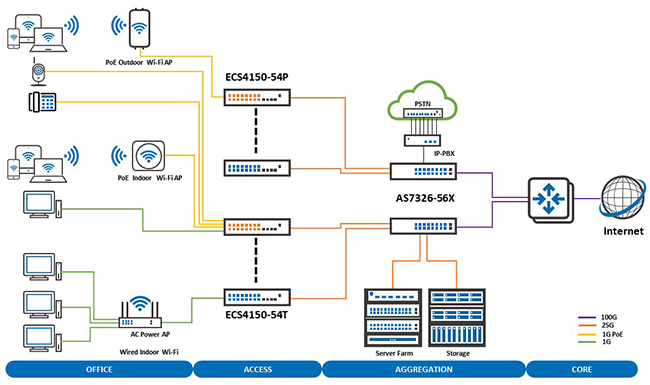

ECS4150 Series Application Scenario
